Removing a Hard Drive
1
Follow the procedures in "Before You Begin" on page 101.
2
Remove the computer cover (see "Removing the Computer Cover" on
page 103).
3
Disconnect the power and data cables from the drive.
4
Disconnect the data cable from the system board.
5
Remove the four screws securing the hard drive.
NOTICE: Ensure that you do not scratch the screw holes with the screw driver, as
the hard disk circuit board assembly is exposed.
6
Slide the drive out and away from the front of the computer.

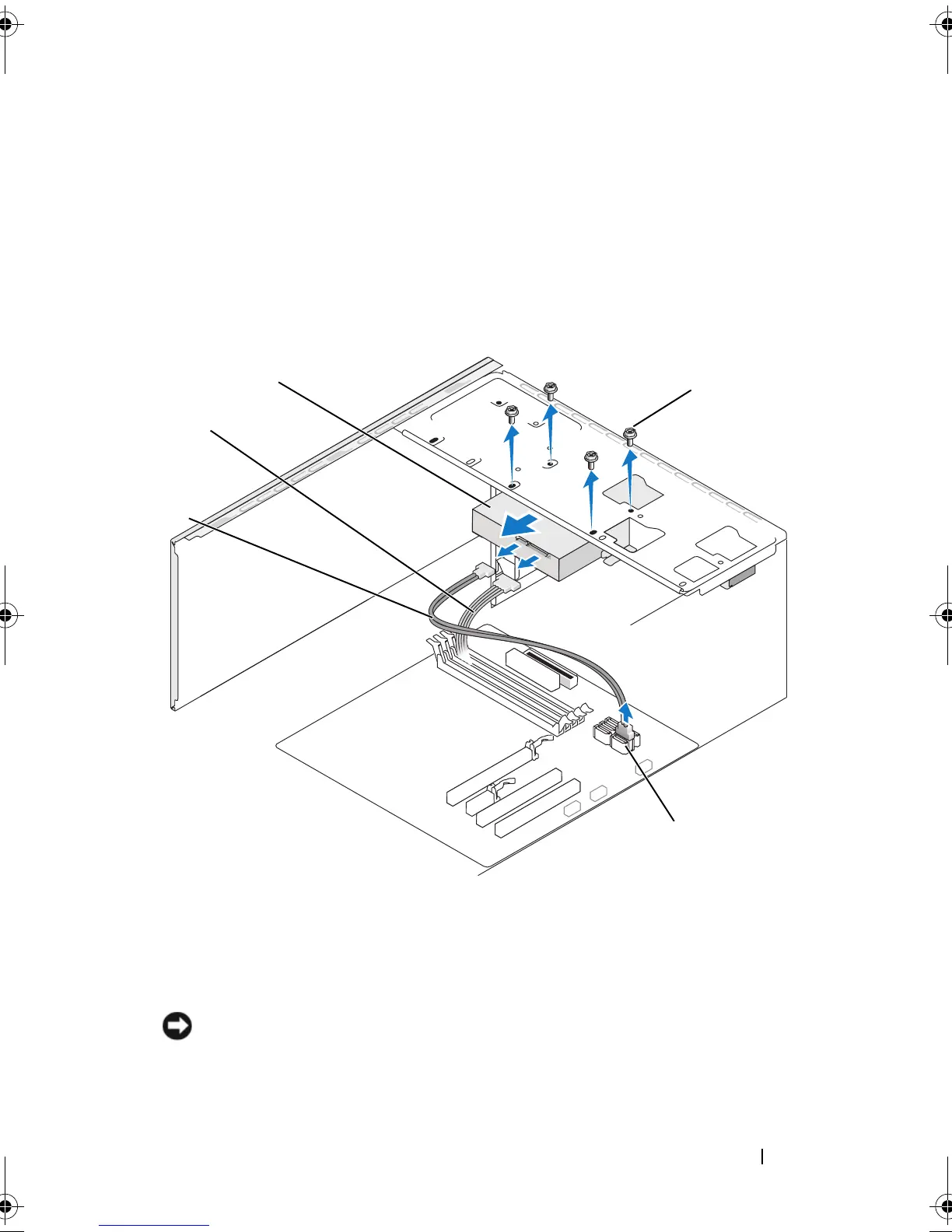

1 hard drive 2 power cable 3 serial ATA data cable
4 system board connector 5 screws (4)
2
4
3
1
5
