20 Setting Up and Using Your Computer

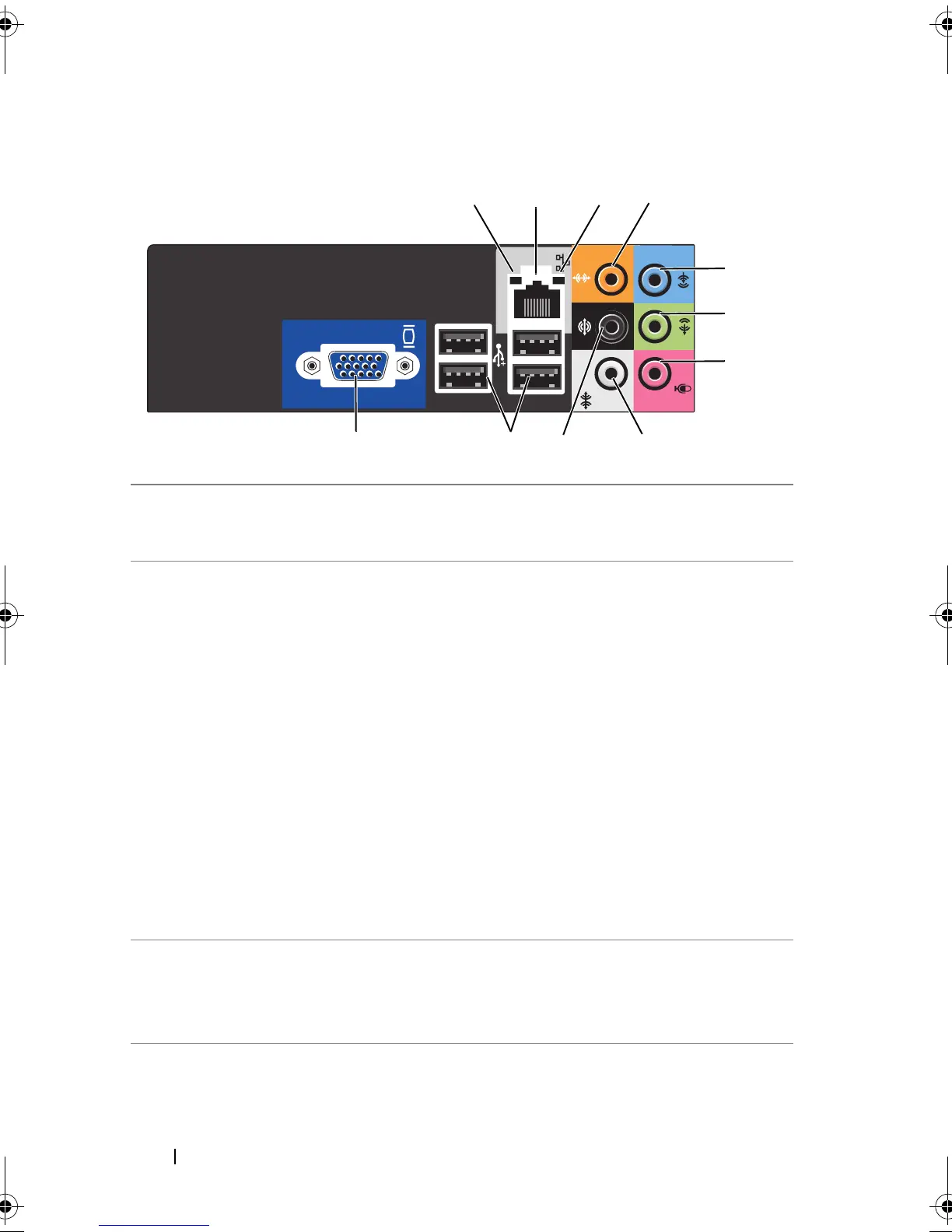

Back Panel Connectors
1 network activity
light
Flashes a yellow light when the computer is transmitting
or receiving network data. A high volume of network traffic
may make this light appear to be in a steady "on" state.
2 network adapter
connector
To attach your computer to a network or broadband
device, connect one end of a network cable to either a
network port or your network or broadband device.
Connect the other end of the network cable to the network
adapter connector on the back panel of your computer. A
click indicates that the network cable has been securely
attached.
NOTE: Do not plug a telephone cable into the network
connector.
On computers with a network connector card, use the
connector on the card.
It is recommended that you use Category 5 wiring and
connectors for your network. If you must use Category 3
wiring, force the network speed to 10 Mbps to ensure
reliable operation.
3 link integrity light
• Green — A good connection exists between a
10/100 Mbps network and the computer.
• Off — The computer is not detecting a physical
connection to the network.
1
8
7
4
5
6
10
11
9
