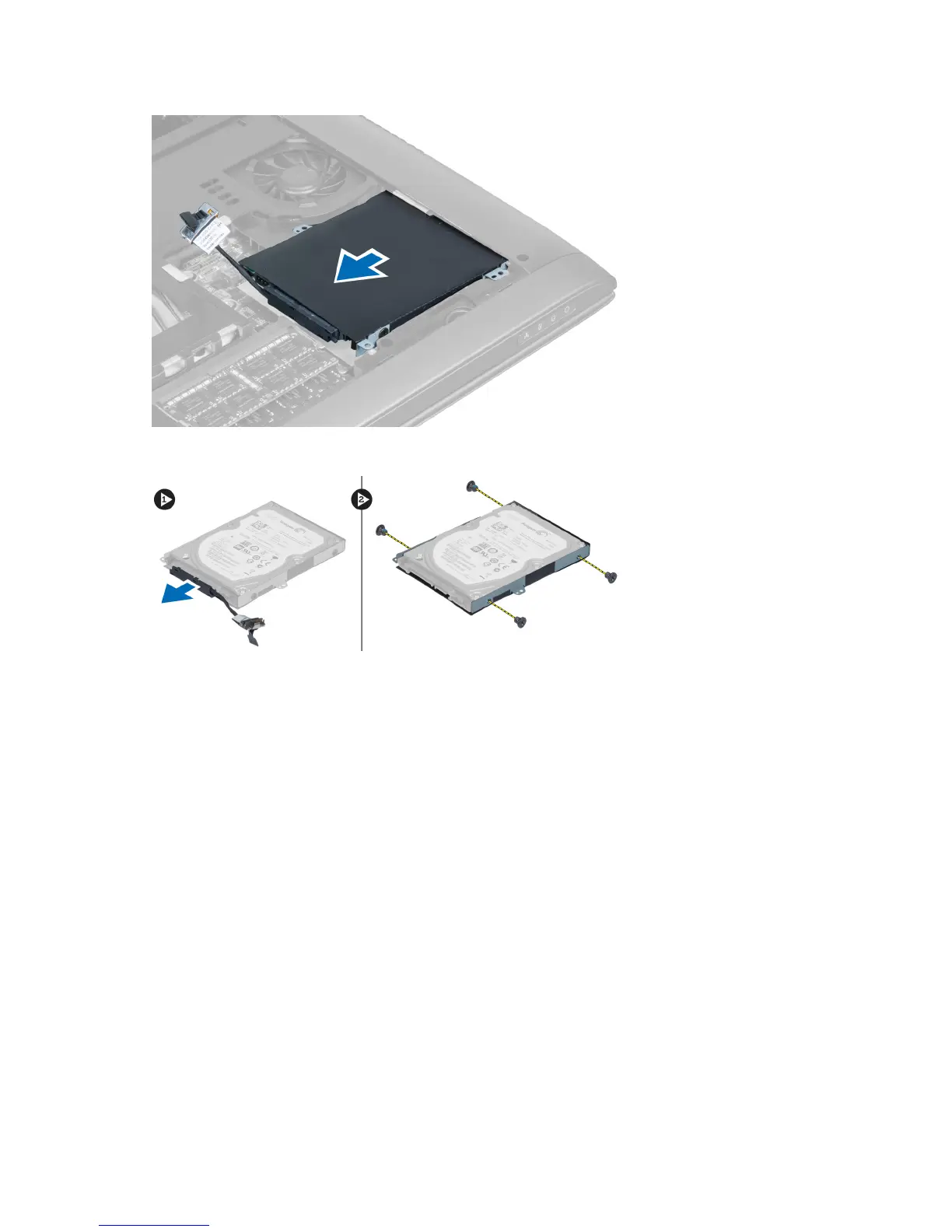

6. Disconnect the hard-drive cable. Remove the screws securing the hard drive to hard-drive bracket. Lift the hard
drive from the bracket.
Installing the Hard Drive
1. Place the hard drive into the hard-drive bracket.
2. Tighten the screws that secures the hard-drive bracket to the hard drive.
3. Connect the hard-drive cable to the hard drive.
4. Place the hard drive on the computer.
5. Connect the hard drive cable to the connector on the system board.
6. Tighten the screws to secure the hard drive to the computer.
7. Install the:
a) base cover
b) battery
8. Follow the procedures in
After Working Inside Your Computer
.
Removing the Keyboard
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the battery.
3. Pry the keyboard upwards with the use of a flat-head screwdriver in the notches along the top of the keyboard.
16
