Dell Vostro 3460 - Installing the Wireless Local Area Network (WLAN) Card; Removing the Display Assembly

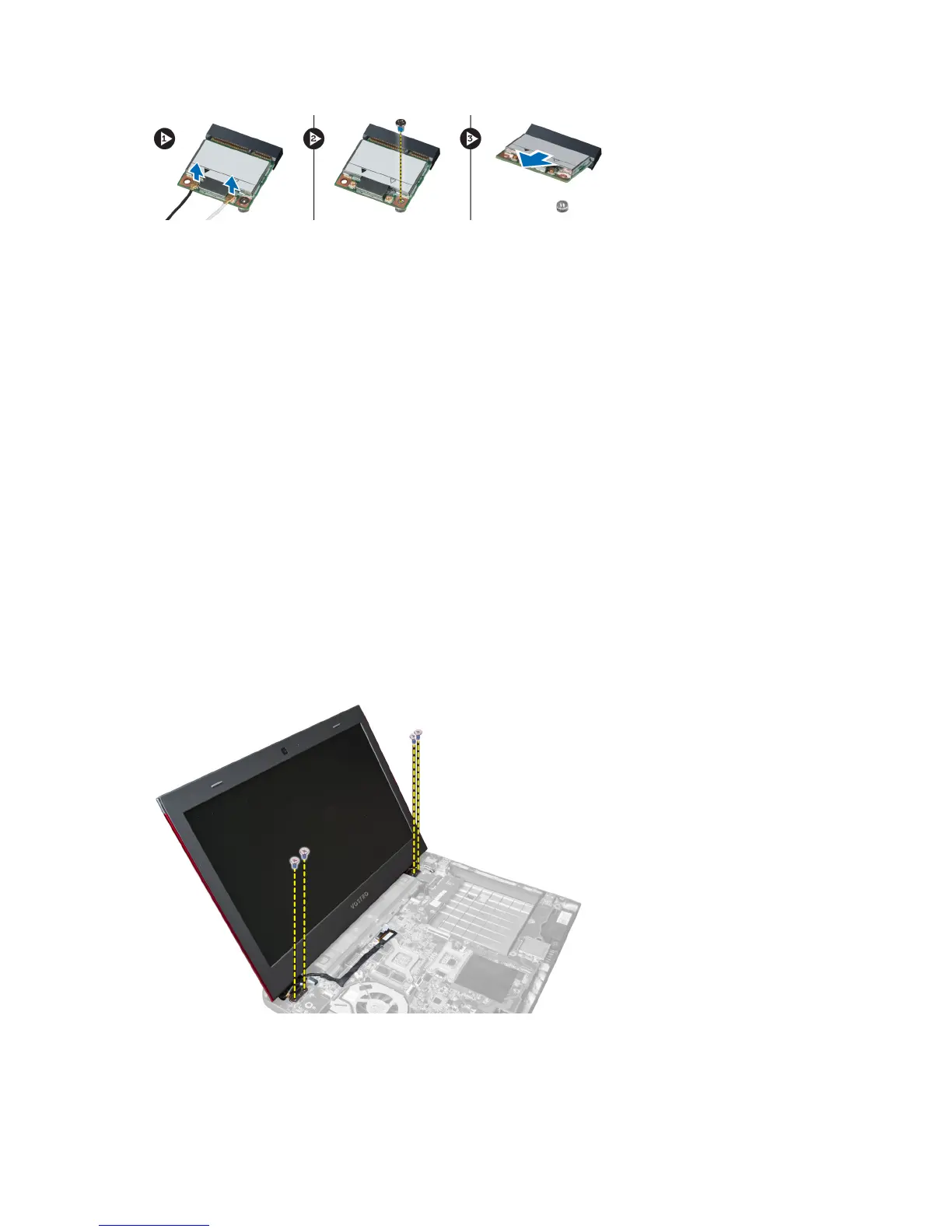

Installing the Wireless Local Area Network (WLAN) Card
1. Slide the WLAN card into its slot.
2. Connect the antenna cables according to the color code on the WLAN card.
3. Tighten the screw to secure the WLAN card.
4. Install the:
a) palmrest
b) keyboard
c) base cover
d) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Display Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) keyboard
c) palmrest
3. Remove the screws that secure the display to the computer.
4. Lift up the display from the computer.
