Installing the System Board

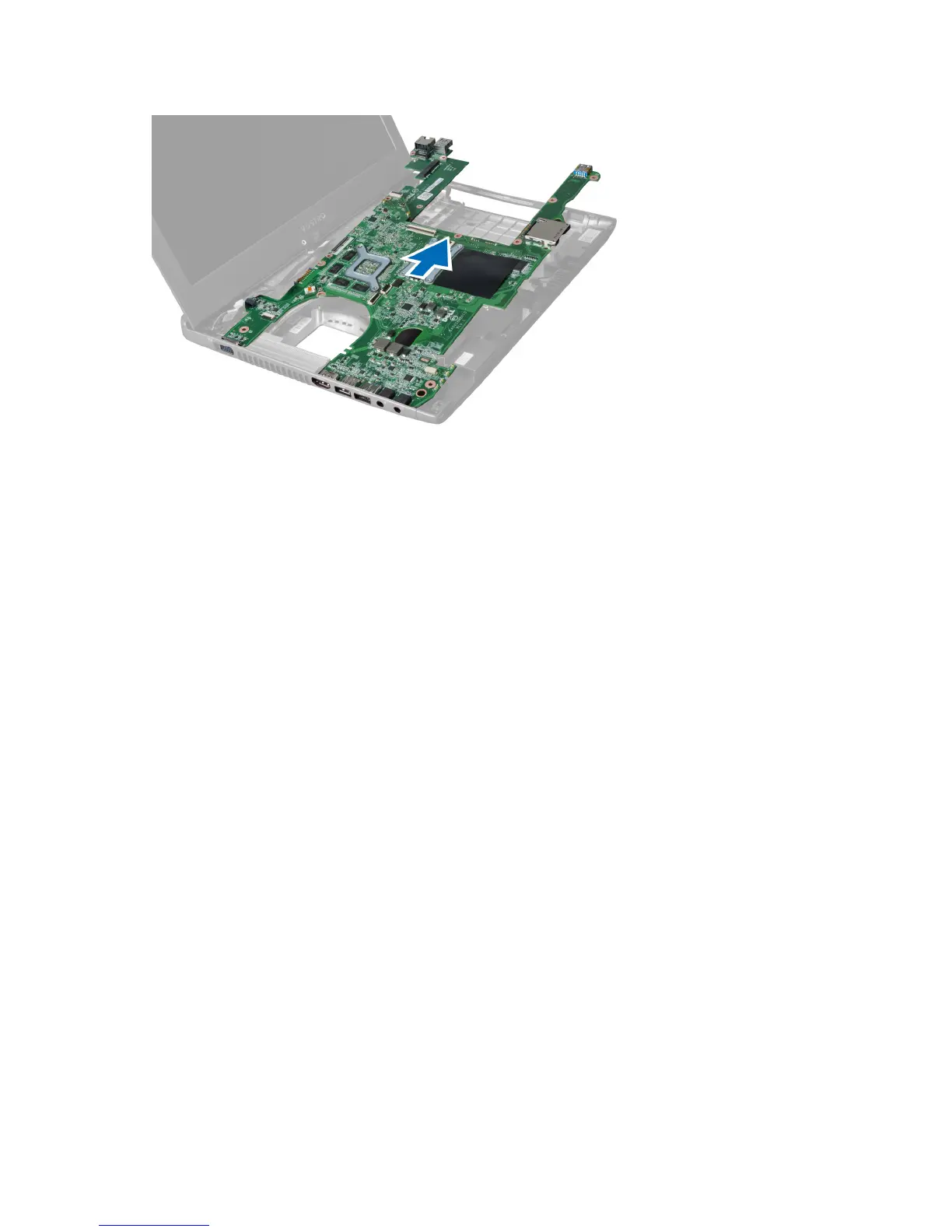

1. Align the system board to the port connectors and place the system board in the computer.
2. Tighten the screws to secure the system board to the chassis.
3. Connect the speaker cable to the system board.
4. Connect the power-connector cable to the system board.
5. Install the:
a) WLAN card
b) heat-sink fan
c) palmrest
d) keyboard
e) hard drive
f) optical drive
g) memory
h) base cover
i) battery
6. Follow the procedures in After Working Inside Your Computer .
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer
2. Remove the:
a) battery
b) base cover
c) memory
d) optical drive
e) hard drive
f) keyboard
g) palmrest
h) ExpressCard reader(if available)
i) WLAN card
