Installing the Keyboard

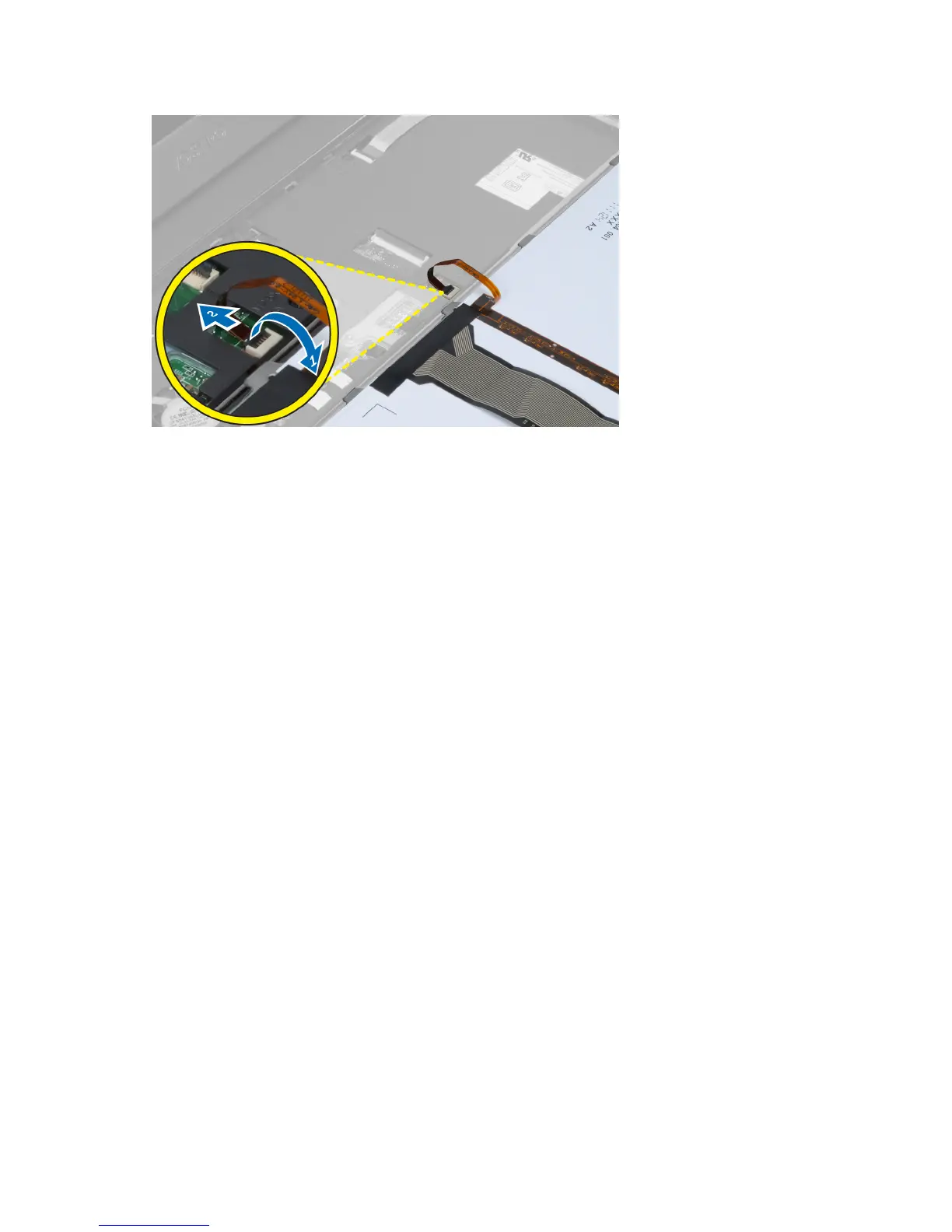

1. Connect the keyboard data cable to the system board.
2. Connect the mylar tape to the system board.
3. Insert the keyboard in its compartment.
4. Press down until the keyboard clicks into place.
5. Install the battery.
6. Follow the procedures in
After Working Inside Your Computer
.
Removing the Palmrest
1. Follow the procedures in
Before Working On Your Computer
.
2. Remove the:
a) battery
b) base cover
c) memory
d) optical drive
e) hard drive
f) keyboard
3. Remove the screws from the bottom of the computer.
18
