Dell Vostro 3460 - Installing the Processor; Removing the mini-SATA Card

a) battery
b) base cover
c) memory
d) optical drive
e) hard drive
f) keyboard
g) palmrest
h) WLAN card
i) ExpressCard reader(if available)
j) heat sink-fan
k) system board
l) heat sink

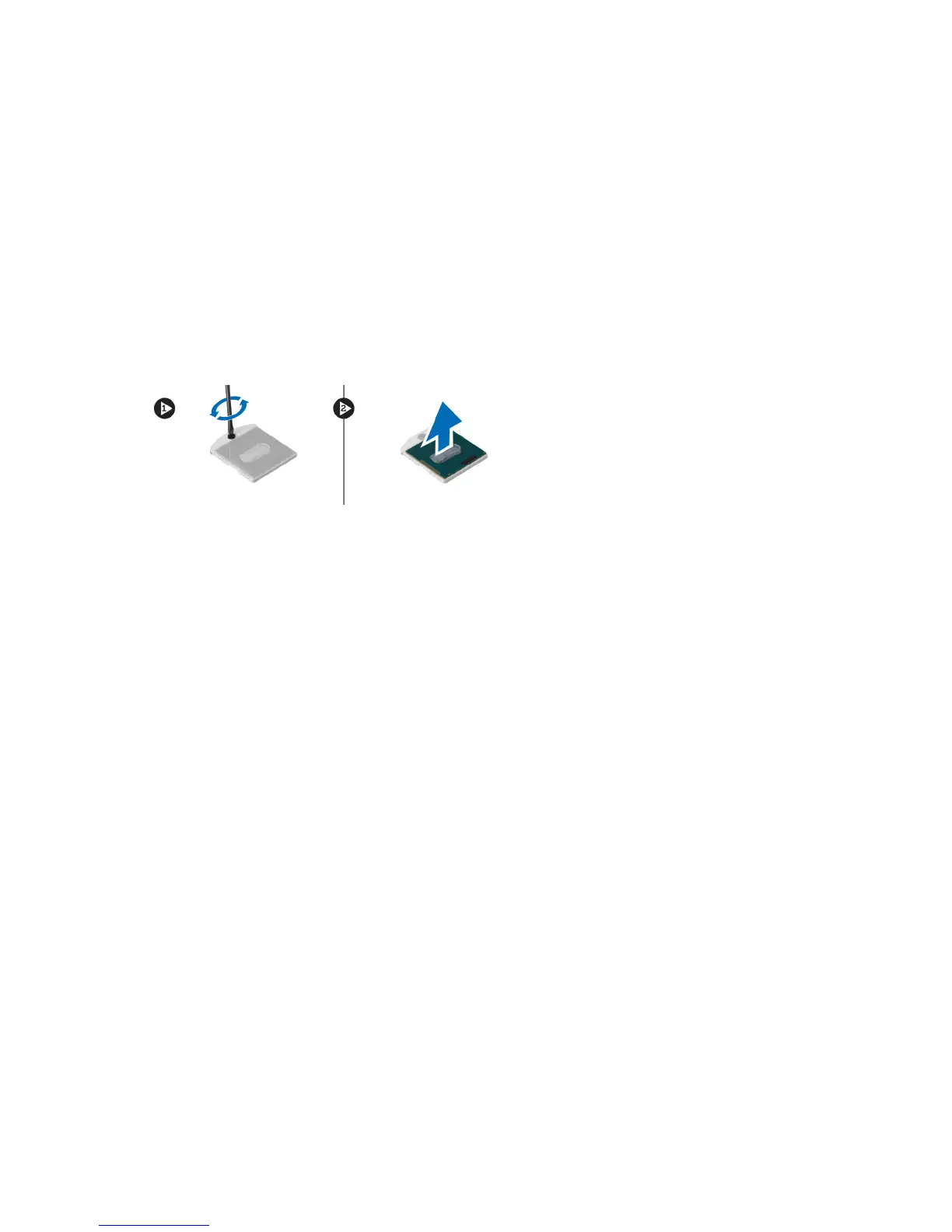

3. Remove the screw. Remove the processor cover and lift the processor from the socket. Place it in an antistatic
package.
Installing the Processor
1. Insert the processor into the processor socket. Ensure the processor is properly seated. Replace the processor
cover.
2. Tighten the screw to secure the processor to the system board.
3. Install the:
a) heat sink
b) system board
c) ExpressCard reader(if available)
d) WLAN card
e) palmrest
f) keyboard
g) hard drive
h) optical drive
i) memory
j) base cover
k) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the mini-SATA Card
1. Follow the procedures in Before Working On Your Computer .
2. Remove the:
a) battery
b) base cover
c) memory
d) optical drive
