Audio board
Removing the audio board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
5. Remove the I/O cover.
6. Remove the bottom cover.
7. Remove the I/O bracket.
About this task

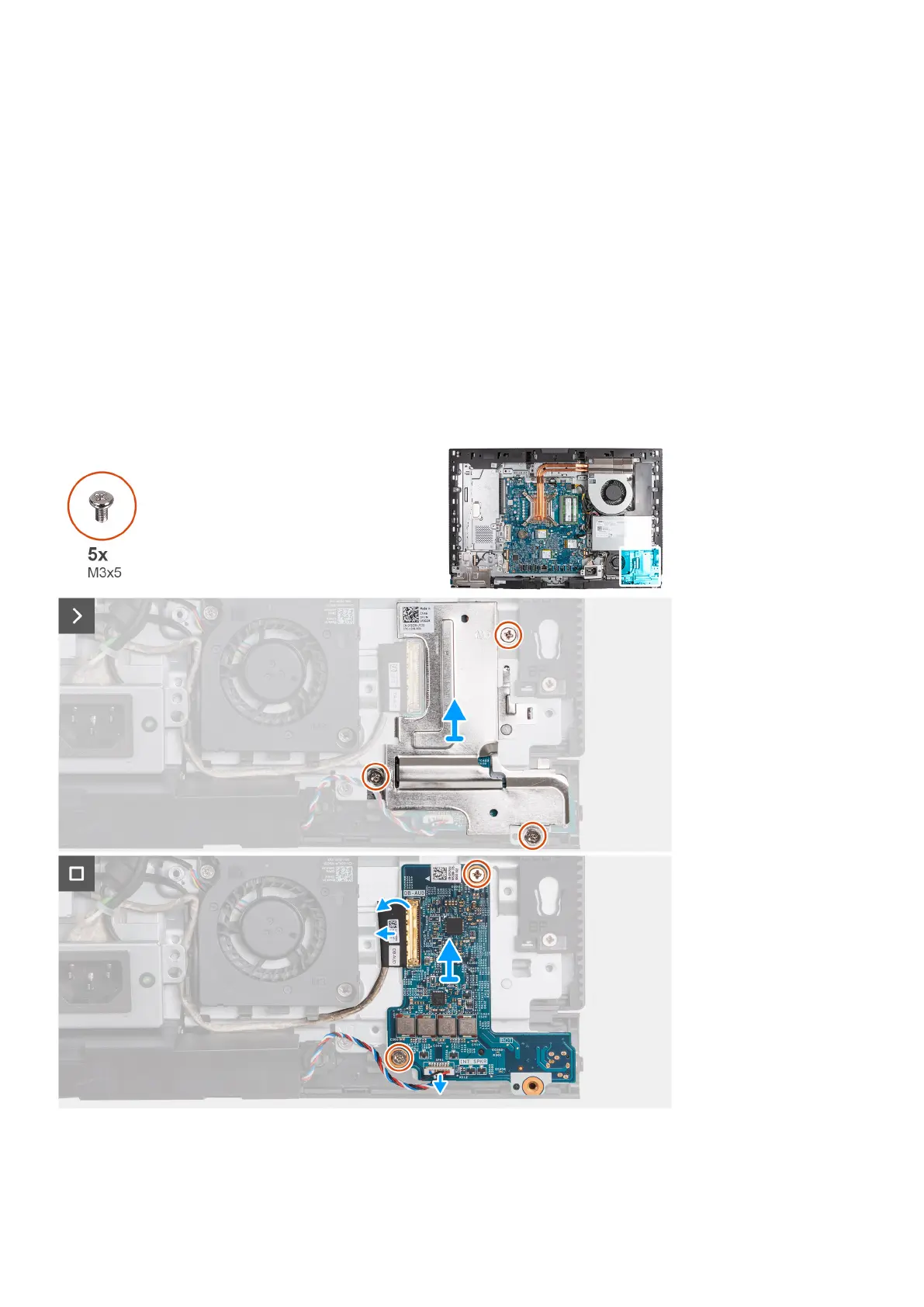

The following image(s) indicate the location of the audio board and provides a visual representation of the removal procedure.
Steps
1. Remove the three screws (M3x5) that secure the audio board shield to the display-assembly base.
