Dell W31C - Audio Board

Audio board
Removing the audio board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
5. Remove the I/O cover.
6. Remove the bottom cover.
7. Remove the I/O bracket.
About this task

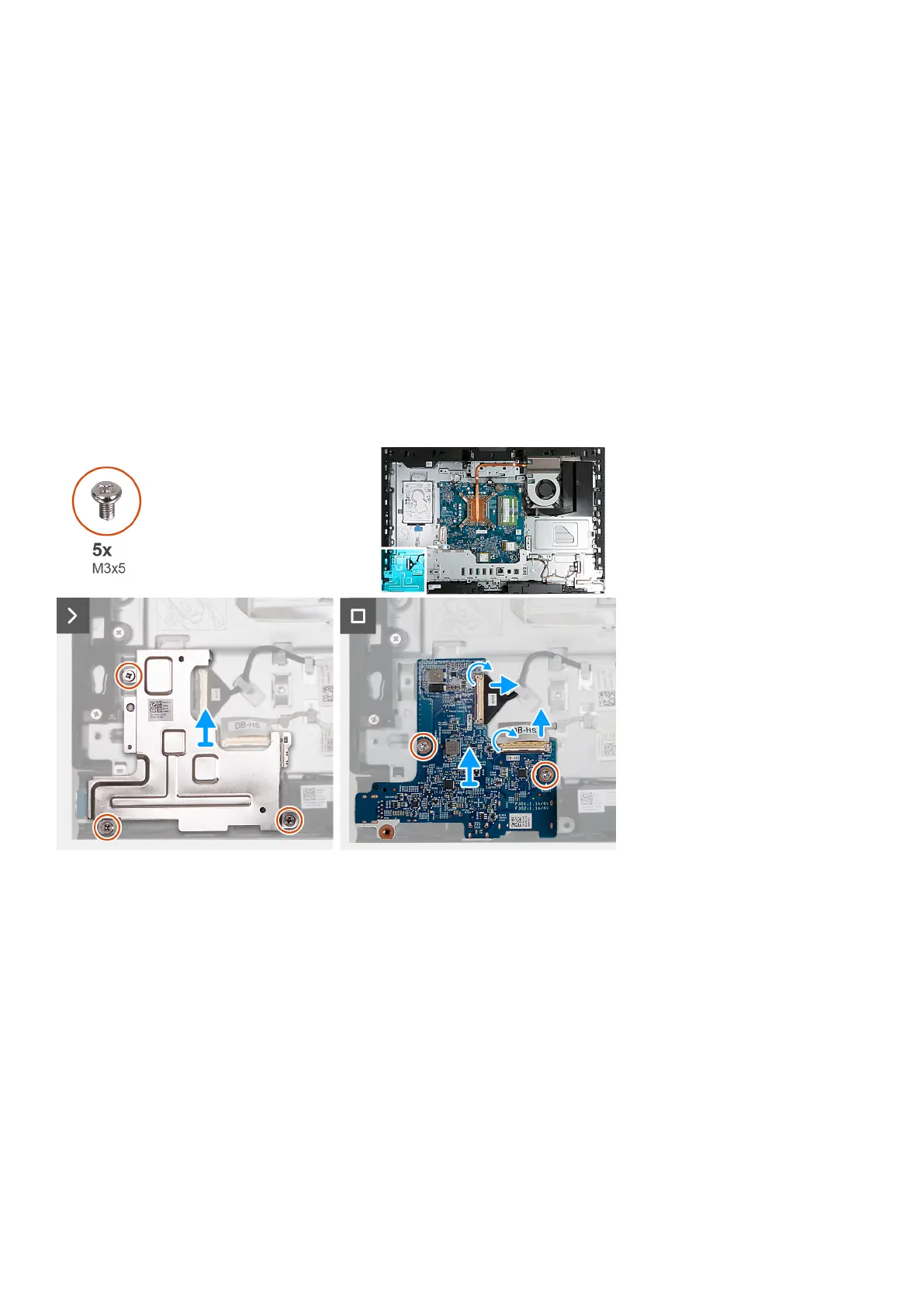

The following image(s) indicate the location of the audio board and provides a visual representation of the removal procedure.
Steps
1. Remove the three screws (M3x5) that secure the audio-board shield to the display-assembly base.
2. Lift the audio-board shield off the display-assembly base.
3. Lift the latch and disconnect the audio cable (DB-AUDIO) from the audio board.
4. Disconnect the speaker cable (INT SPKR) from the audio board.
5. Remove the two screws (M3x5) that secure the audio board to the display-assembly base.
6. Lift the audio board off the display-assembly base.
Installing the audio board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Removal and installation procedures for Energy Efficient processors
