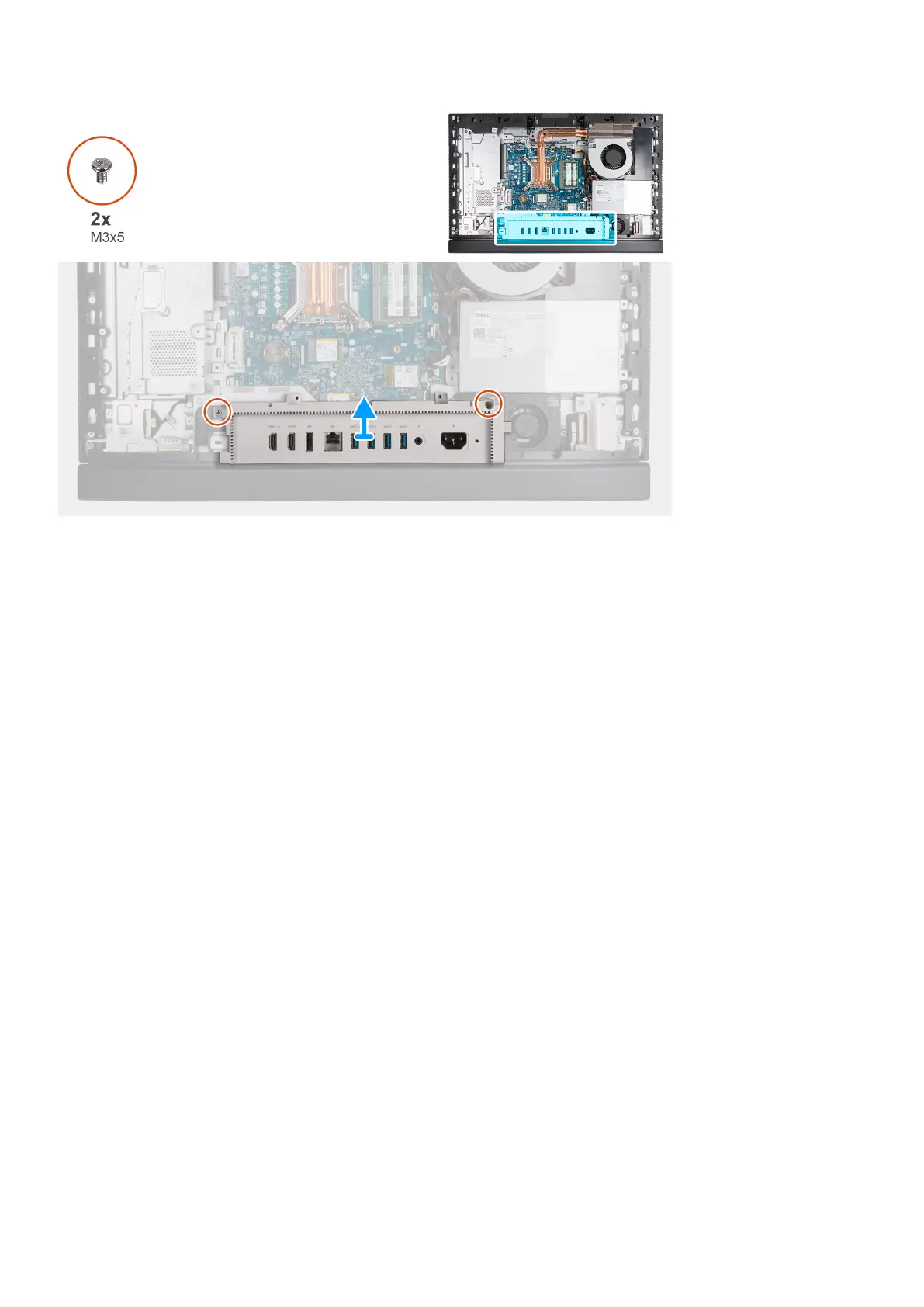

Steps
1. Remove the two screws (M3x5) that secure the I/O cover to the display-assembly base.
2. Lift the I/O cover off the display-assembly base.
Installing the I/O cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the I/O cover and provides a visual representation of the installation procedure.
66
Removal and installation procedures for High Performance processors
