Screw list
The following table provides the list of screws that are used for securing dierent
components to the computer.

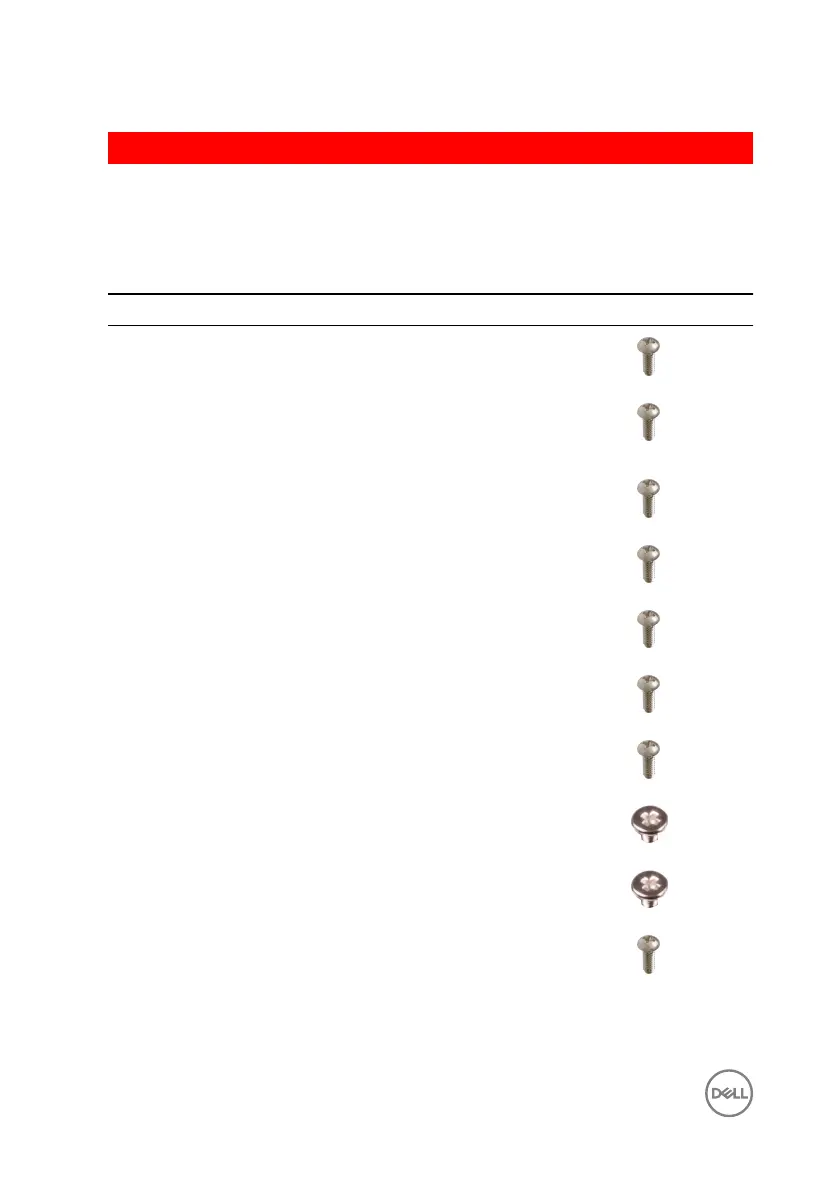

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Hard drive Hard-drive
bracket
#6-32x1/4'' 4
Hard-drive
cage
Chassis #6-32x1/4'' 6 (two per
hard-drive
cage installed)
Power-supply
bracket
Chassis #6-32x1/4'' 2
Power-supply
unit
Chassis #6-32x1/4'' 4
Blower Heat-sink
assembly
#6-32x1/4'' 3
Chassis fan Chassis #6-32x1/4'' 1
Power button
module
Top panel #6-32x1/4'' 1
Solid-state
drive
System board M2x2.5 1
Wireless card System board M2x2.5 1
Top IO panel Chassis #6-32x1/4'' 4
12
