Removing and Installing Parts 95
4 Gently press the card into the AGP connector until it clicks into place, ensuring that
the tab fits into the notch on the front end of the card.
5 Lower the retention arm and press it into place, securing the card(s) in the computer.
6 Close the computer cover (see page 117).
7 Connect the monitor cable to the card’s video connector.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then
plug it into the computer.
8
Connect your computer and devices to electrical outlets, and turn them on.
Drives
Overview
Your computer supports one floppy drive and a maximum combination of up to four of any
of the following drives.
NOTE: Install only IDE hard drives
or
serial ATA hard drives in your computer. You cannot
install both types of drives.
• Two hard drives (IDE, Serial ATA)
•Two CD or DVD drives

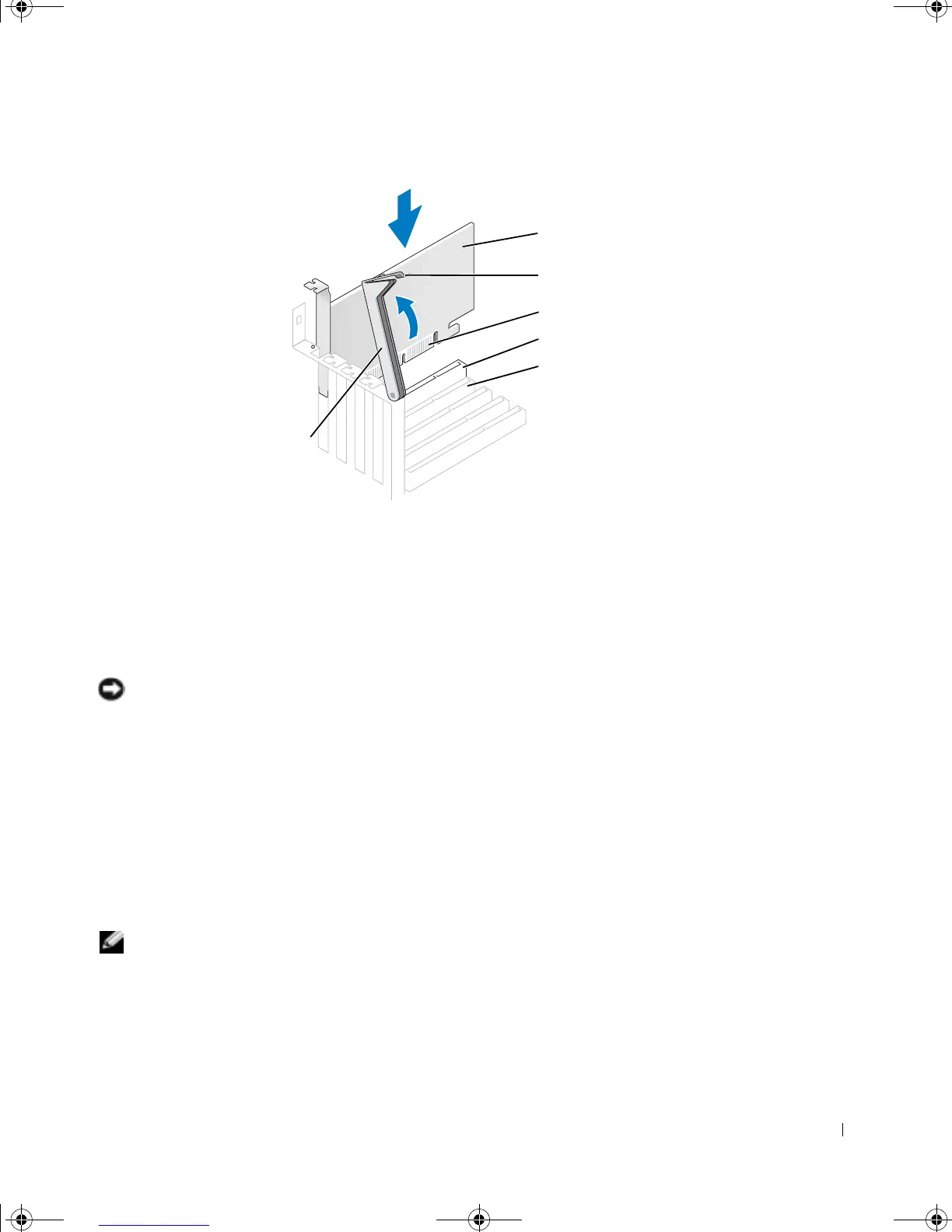

PCI connector
AGP connector
AGP card
edge connector
retention arm
lever
