Dell XY689 - Removing the Display Panel Hinges

f. back cover
3. Follow the procedure in After working inside your computer
Removing the display panel hinges
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. back cover
b. battery
c. WLAN card
d. LED board
e. system fan
f. display assembly
g. display bezel
3. To remove the display panel hinges:

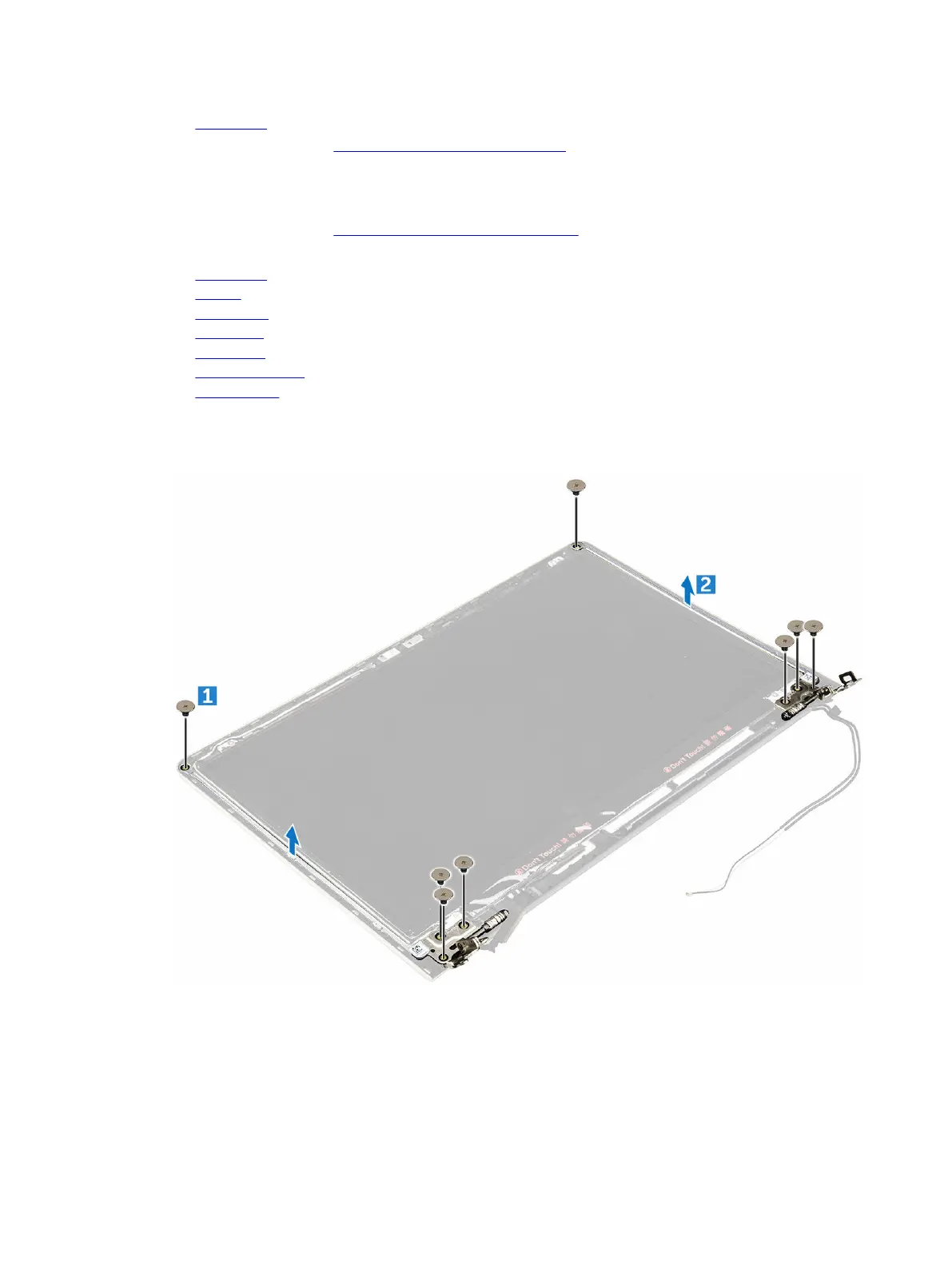

a. Remove the screws that secure the display panel hinges [1].
b. Lift and remove the display panel hinges from the computer [2].
41
