20 Trigno Wireless System User’s Guide
TM

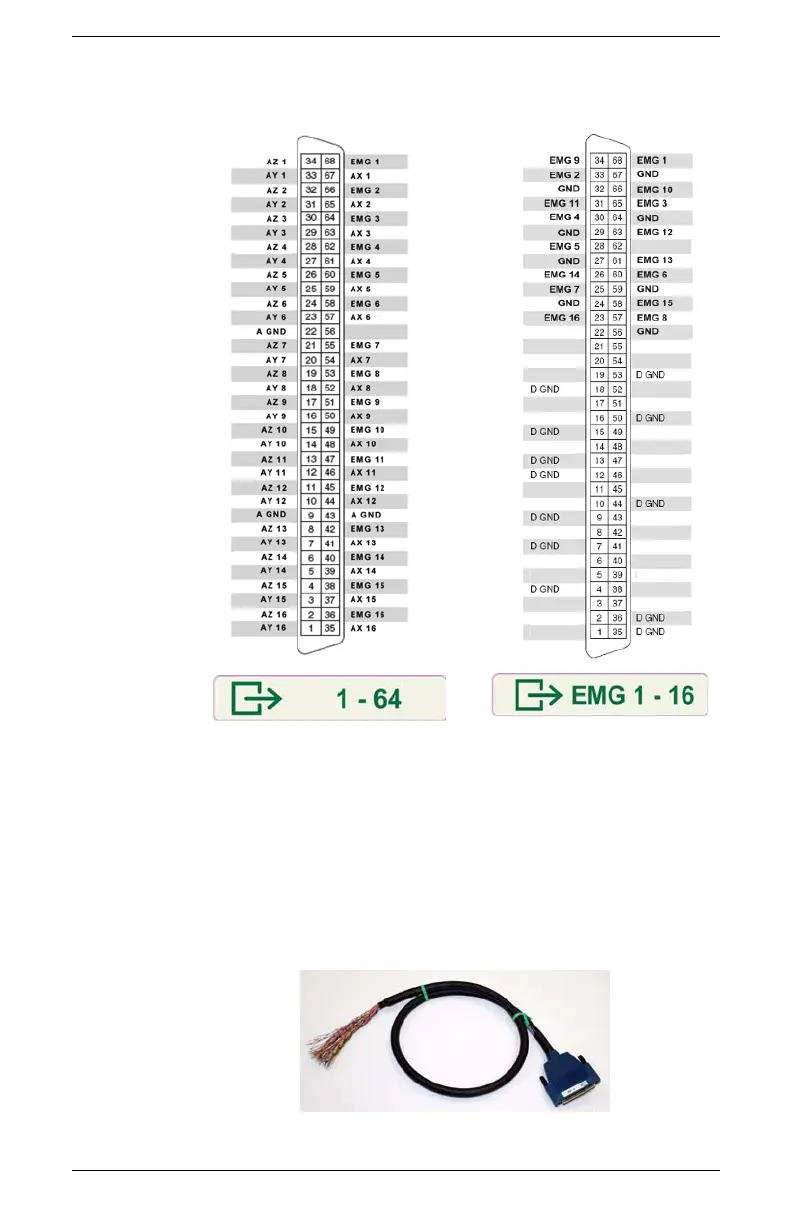

Figure 10. Pinouts of the analog output connectors.
Screw Terminal Connections
Many data acquisition systems are equipped with screw-type wire
terminations. In these cases Delsys can supply a cable assembly that
mates with the analog output connectors and breaks out the
individual channels onto single conductors. Please contact Delsys
for details regarding this particular wire assembly or other
connectivity needs. Please refer to Appendix II for further details
regarding the DC-A22 Unterminated Output Cable.
Figure 11. DC-A22 Unterminated Output Cable.
