The required temperature is set on the thermostat of
each heat emitter (convectors, panel heaters, under-
floor heating or radiant ceiling heating, towel warmer
radiators, storage heaters, etc.).
Pilot Wire
order
(mode)
Setting on the heat emitter
Room
temperature
Comfort
Comfort setting (thermostat knob)
example : 19°C
Economy
Economy setting (thermostat knob)
example : 16°C
or Comfort –X°C
(depending on heat emitter model)
Absence Frost protection set to 7°C or 8°C
(depending on model)
Shutdown Heating shutdown
19°C
16°C
7°C or 8°C
No heating
- 3 -- 2 -
Presentation
This unit optimizes the energy management of your
home:
• Comfort or Economy mode programming of the hea-
ting for 1 zone (CALYBOX 110) or 2 zones (CALYBOX
120),
• reduction in the subscription costs by preventing the
circuit-breakers from tripping when the electricity
consumption is too great (load shedding),
• indication of the electricity consumption of the system.

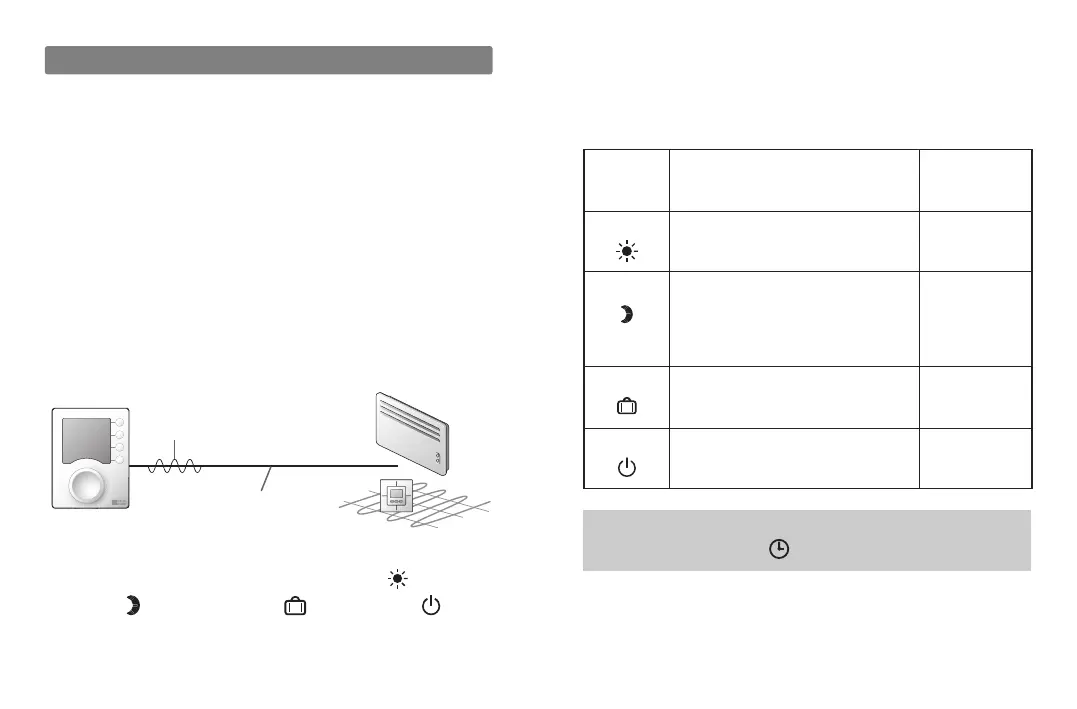

To control the heat emitters, the programmer uses the
Pilot Wire.
Independent from the power supply of the heat emitter,
the Pilot Wire is used to send the Comfort ,
Economy , Frost Protection or Shutdown
orders requested by the programmer.
IMPORTANT: The heat emitter must be in automatic
mode (PROG, AUTO, , etc. depending on model).
Pilot wire
Pilot Wire orders
Heat emitters
Programmer
