Chapter 1 Unpacking Check and Model Explanation|ASDA-A&A+ Series
1-2 Revision April 2009
(2) One encoder cable, which is used to connect the encoder of servo motor and CN2 terminal of servo
drive.
(3) CN1 Connector: 50 PIN Connector (3M type analog product)
(4) CN2 Connector: 20 PIN Connector (3M type analog product)
(5) CN3 Connector: 6 PIN Connector (IEEE1394 analog product)
1.2 Model Explanation

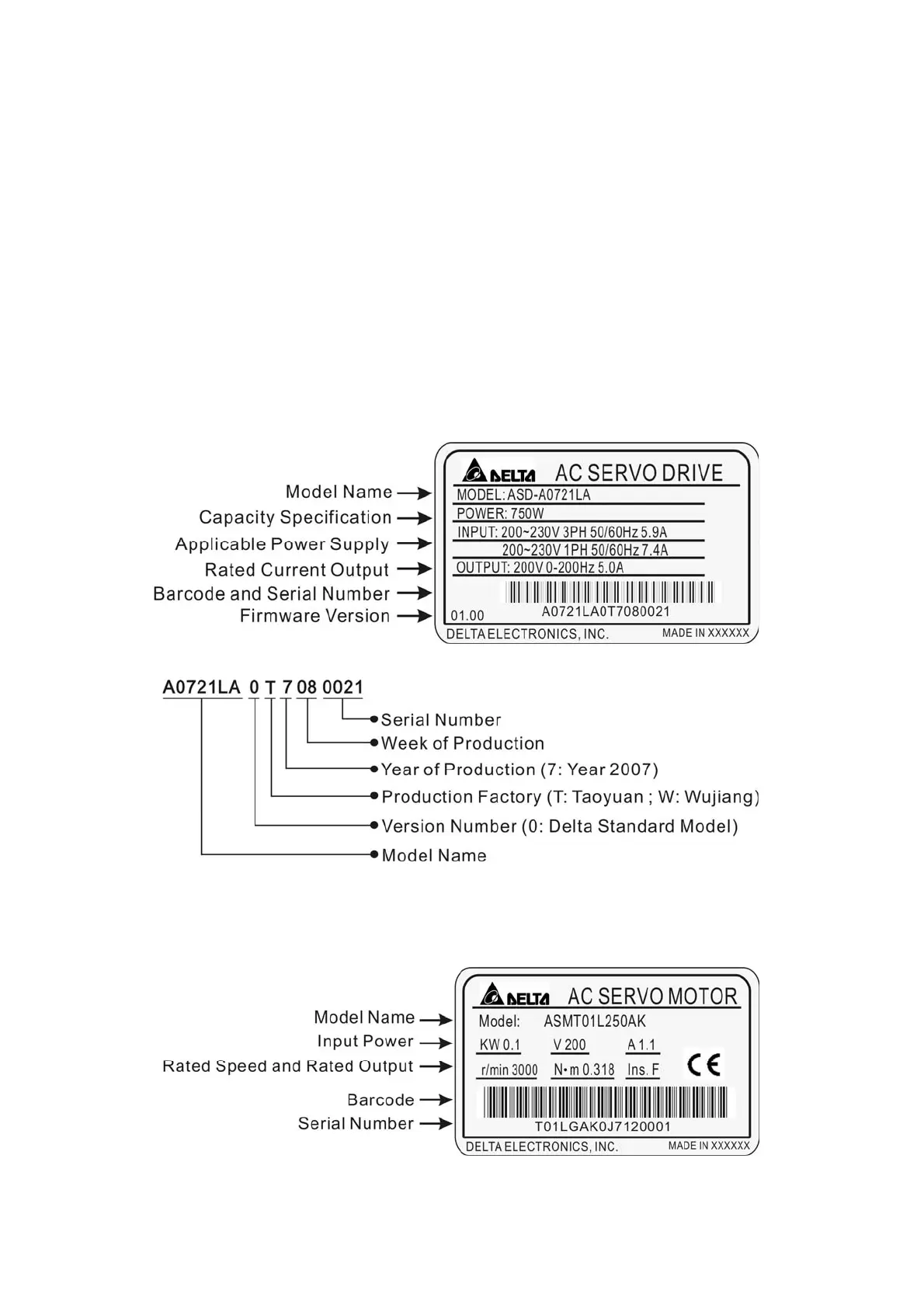

1.2.1 Nameplate Information
ASDA-A Series Servo Drive
Nameplate Explanation
Serial Number Explanation
ASMT Series Servo Motor
Nameplate Explanation
