Chapter 4 Display and Operation|ASDA-A&A+ Series
Revision April 2009 4-9
Figure 4.5
SET
or
SET
or
SET
SHIFT

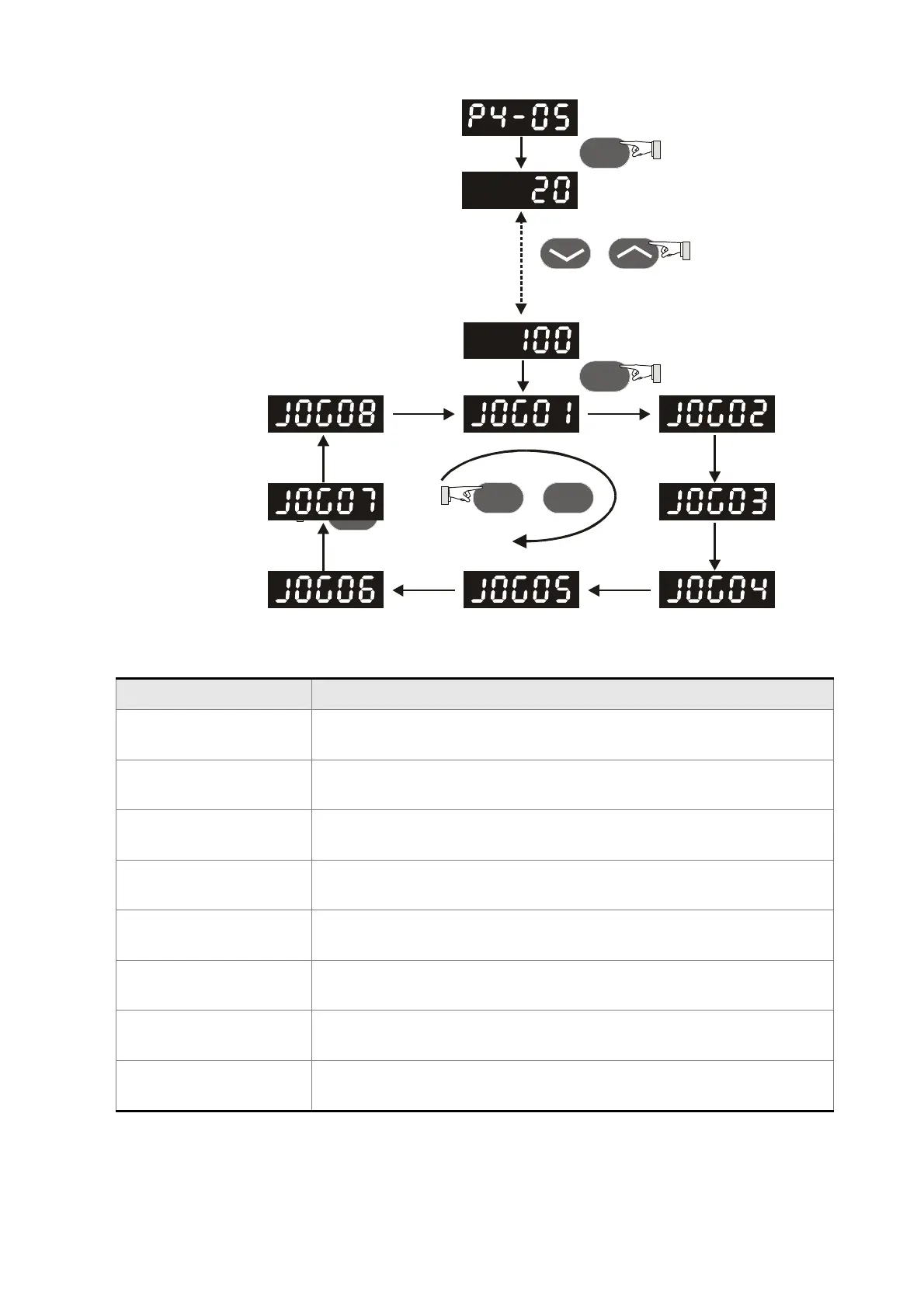

The learning position and internal memorized position are listed as below:
Learning Position Internal Memorized Position
JOGo1
P1-15 (1st Position Command for Rotation)
P1-16 (1st Position Command for Pulse)
JOGo2
P1-17 (2nd Position Command for Rotation)
P1-18 (2nd Position Command for Pulse)
JOGo3
P1-19 (3rd Position Command for Rotation)
P1-20 (3rd Position Command for Pulse)
JOGo4
P1-21 (4th Position Command for Rotation)
P1-22 (4th Position Command for Pulse)
JOGo5
P1-23 (5th Position Command for Rotation)
P1-24 (5th Position Command for Pulse)
JOGo6
P1-25 (6th Position Command for Rotation)
P1-26 (6th Position Command for Pulse ber)
JOGo7
P1-27 (7th Position Command for Rotation)
P1-28 (7th Position Command for Pulse)
JOGo8
P1-29 (8th Position Command for Rotation)
P1-30 (8th Position Command for Pulse)
