Chapter 7 Servo Parameters|ASDA-A&A+ Series
7-62
Revision April 2009

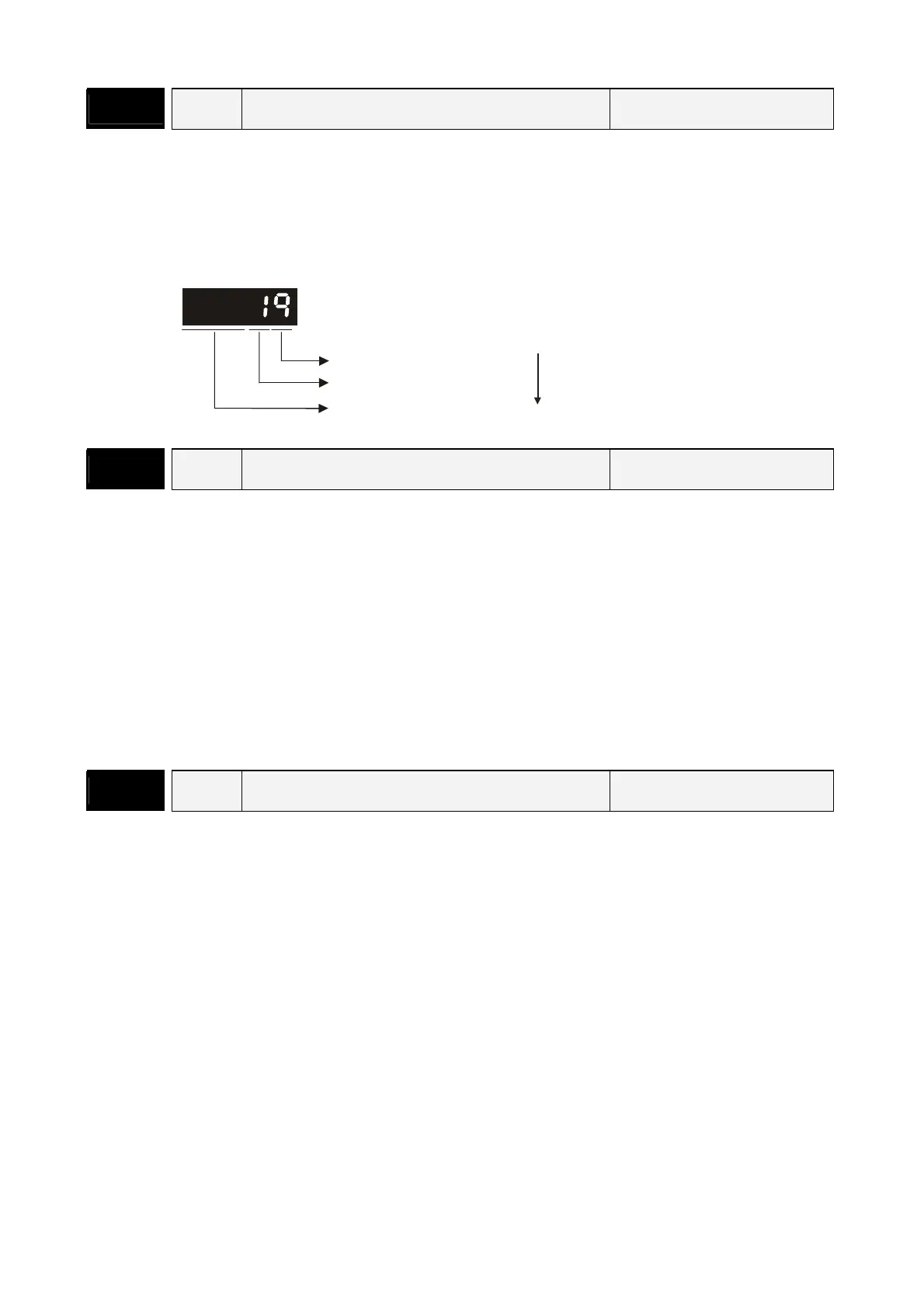

P2 - 33▲
INF Easy Setting of Input Filter Communication Addr.: 0221H
Default: 0 Related Section:
Applicable Control Mode: ALL Section 6.3.6
Unit: N/A
Range: 00 ~ 19
Settings:
not used
B
• A=1: Enable this function
• B: Speed selection
Low speed
High speed
B=0
B=9
P2 - 34
SDEV Overspeed Warning Condition Communication Addr.: 0222H
Default: 5000 Related Section: N/A
Applicable Control Mode: S
Unit: r/min
Range: 1 ~ 5000
Settings:
This parameter is used to set the over speed threshold that is used to determine the over speed
fault condition. When the difference in speed between the desired speed and actual motor speed
is over than the setting value of parameter P2-34, the servo fault, Overspeed (ALE07) will be
activated.
P2 - 35
PDEV Excessive Error Warning Condition Communication Addr.: 0223H
Default: 30000 Related Section: N/A
Applicable Control Mode: Pt, Pr
Unit: pulse (ASDA-A series, Pr mode of ASDA-A+ series)
1/10000 rev. (Pt mode of ASDA-A+ series)
Range: 1 ~ 30000
Settings:
This parameter is used to set the position deviation excessive error threshold that is used to
determine the escessive deviation fault condition. When the difference in pulse number between
the desired position and actual motor position is over than the setting value of parameter P2-35,
the servo fault, Excessive Deviation (ALE09) will be activated.
