Delta Electronics VFD007M43B

Appendix B Accessories|
Revision May 2008, ME14, SW V3.04 B-3
R/L1
S/L2
T/L3
NFB
MC
VFD Series
MOTOR
O.L.
U/T1
V/T2
W/T3
SA
R/L1
S/L2
T/L3
MC
IM
Thermal
Overload
Relay or
temperature
switch
Surge
Absorber
B1
B2
BR
O.L.
Thermal Overload
Relay
Brake
Resistor
Tem per at u re
Switch

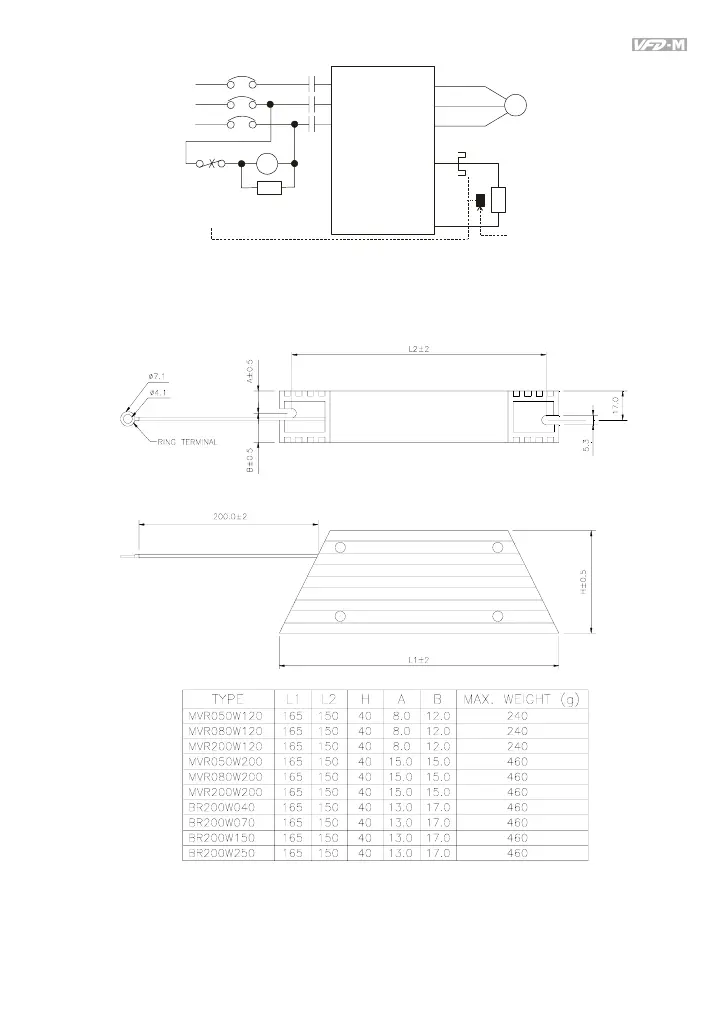

B.1.1 Dimensions and Weights for Brake Resistors& Brake Units
(Dimensions are in millimeter)
