Delta Electronics VFD007M43B User Manual

Chapter 1 Introduction|
Revision May 2008, ME14, SW V3.04 1-7

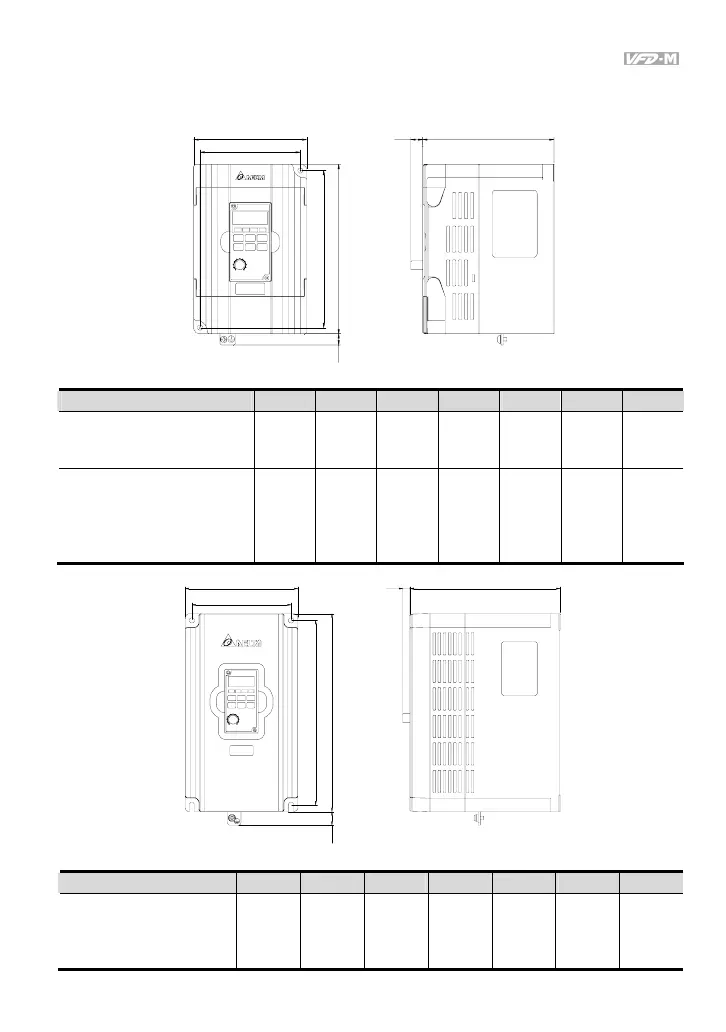

1.3 Dimensions
H
DD1
H1
W1
W
H2
Unit: mm [inch]
Model Name W W1 H H1 H2 D D1
VFD004M21A/23A,
VFD007M21A/23A,
VFD015M21A/23A
85.0
[3.35]
74.0
[2.91]
141.5
[5.57]
130.5
[5.14]
10.0
[0.39]
113.0
[4.45]
10.0
[0.39]
VFD002M11A,
VFD004M11A/21B,
VFD007M11A/21B/43B/53A,
VFD015M21B/43B/53A,
VFD022M23B/43B/53A
100.0
[3.94]
89.0
[3.50]
151.0
[5.94]
140.0
[5.51]
10.0
[0.39]
116.5
[4.59]
10.5
[0.41]
D1 D
H2 H
H1
W
W1
Unit: mm [inch]
Model Name W W1 H H1 H2 D D1
VFD022M21A,
VFD037M23A/43A/53A,
VFD055M23A/43A/53A,
VFD075M43A/53A
125.0
[4.92]
110.0
[4.33]
220.0
[8.66]
205.0
[8.07]
15.0
[0.59]
166.3
[6.55]
8.2
[0.32]

Delta Electronics VFD007M43B Specifications

General

Brand	Delta Electronics
Model	VFD007M43B
Category	DC Drives
Language	English
