Actual Acceleration/Deceleration Time=
Acceleration/Deceleration Time x(Master Freq.-Min.Output Freq.)
Max. Output Freq.
Frequency
Max.
Output
Freq.
Pr.10
or
Pr. 12
Pr.11
or
Pr. 13
Time
Deceleration Time
Acceleration Time
Pr.14
Acceleration S-Curve
Settings 00 to 07 Factory Setting: 00
 This parameter is used whenever the motor load needs to be accelerated or decelerated
smoothly. The desired accel/decel effect is selectable from 0 to 7, in which the larger the
number, the greater the effect achieved. If the default value of Pr.111 Deceleration S Curve is
unchanged (“0”), then Pr.14 sets both acceleration and deceleration S-Curves. If Pr.111 is set
to any value other than “0”, then Pr.14 will set the acceleration S-Curve and Pr.111 will set the
deceleration S-Curve.
Freq.

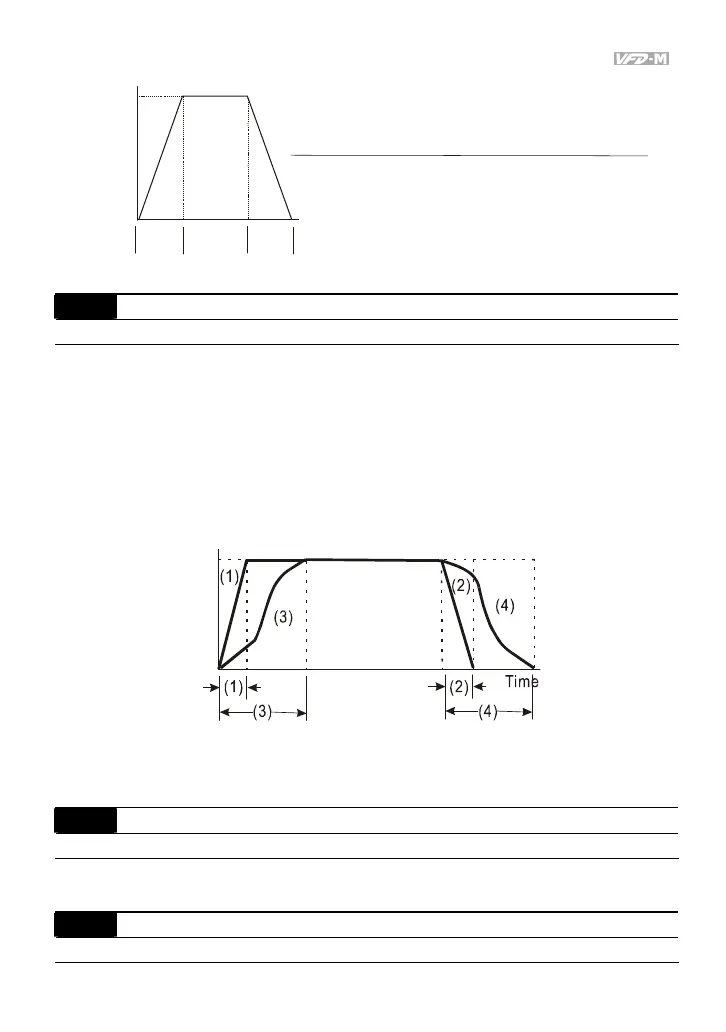

Acceleration/Deceleration characteristics
(1), (2) Disabling S curve
(3), (4) Enabling S curve
Pr.15
Jog Accel / Decel Time
Unit: 0.1 or 0.01 sec
Settings 0.1 to 600.0 sec or 0.01 to 600.0 sec Factory Setting: 1.0 sec
 This parameter sets the acceleration or deceleration time for Jog operation.
Pr.16
 Jog Frequency
Unit: 0.1 Hz
Settings 0.00 to 400.0 Hz Factory Setting: 6.00 Hz
