Pr.47
 Desired Frequency Attained
Unit: 0.1Hz
Settings 0.00 to 400.0 Hz Factory Setting: 0.00

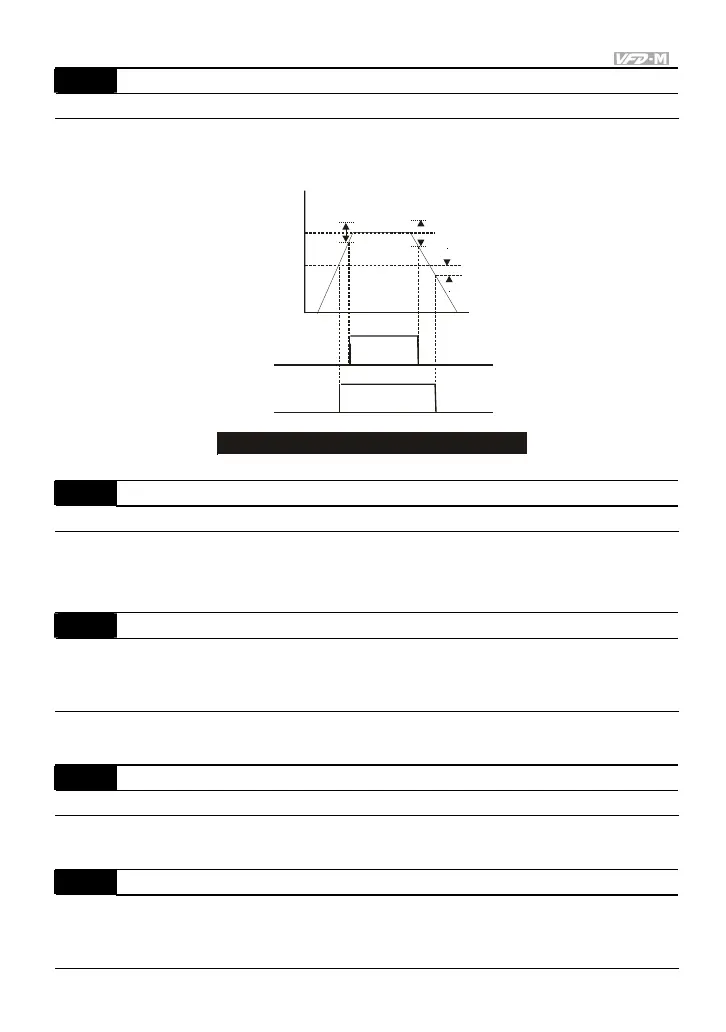

 This parameter allows monitoring a certain frequency and then activates one of the Multi-
function output terminals (Pr.45 or Pr.46 set to 8) when that frequency is achieved.
Desired Freq. Detection
range
-2Hz
Detection
range
+
-
4Hz
Detection range
+
-
2Hz
Time
Freq.
Max. Output
Freq.
ON
ON
OFF
OFF
OFF
OFF
Preset Freq.
Attained
Indication
Pr.45 to
Pr.46
Desired Freq.
Attained
Indication
Pr.45 & Pr.46
Desired Freq. Attained & Preset Freq. Attained
Pr.47
Pr.48
 Adjust Bias of External Input Frequency
Unit: 0.1Hz
Settings 0.00 to 200.0% Factory Setting: 0.00 Hz
 This parameter provides a frequency offset when the source of frequency command is the
analog input.
Pr.49
 Potentiometer Bias Polarity
Factory Setting: 00
Settings 00 Positive Bias
01 Negative Bias
 This parameter sets the potentiometer Bias Frequency to be positive or negative.
Pr.50
 Potentiometer Frequency Gain
Unit: 1%
Settings 0.10 to 200.0% Factory Setting: 100.0
 This parameter sets the ratio of analog input vs frequency output.
Pr.51
Potentiometer Reverse Motion Enable
Factory Setting: 00
Settings 00 Reverse Motion Disabled in negative bias
01 Reverse Motion Enabled in negative bias
