IC650 DC Wiring Instructions
36
To attach DC cabling to the IC650 Charger,
you will need the following items:
• 1 Torx T30 screwdriver
• 1 Torx T10 screwdriver
• 2 Torx T30/M6 screws (provided)
• 2 longer Torx T10 screws (provided)
• 1 shorter Torx T10 screw (provided)
•
1 DC cable with ring terminals for
attachment into the DC block
• 1 DC block cover (provided)
• 1 DC cable clamp (provided)

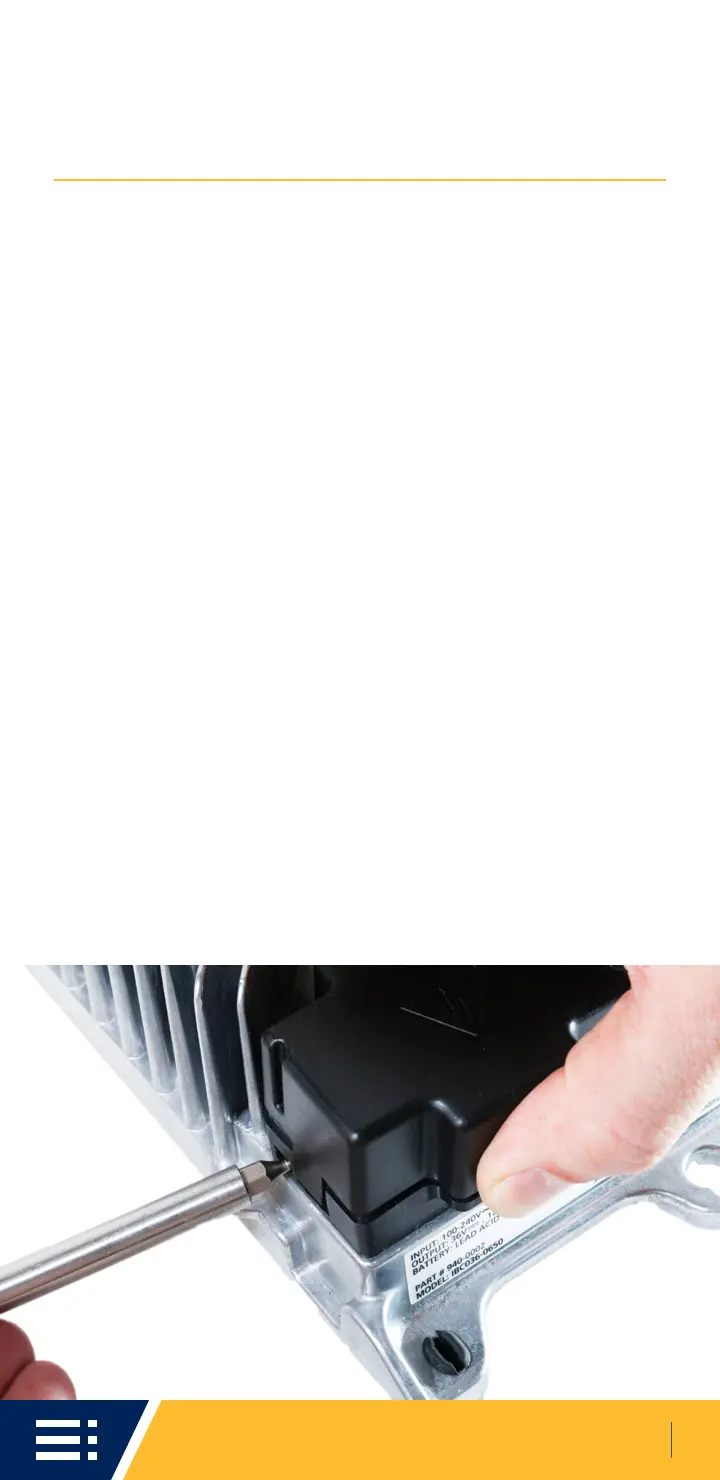

1.
Remove the DC terminal block cover
by inserting the head of the Torx T30
screwdriver into the gap on the lower
left side of the DC block fixture. Pull up
on the same side of the cover.
