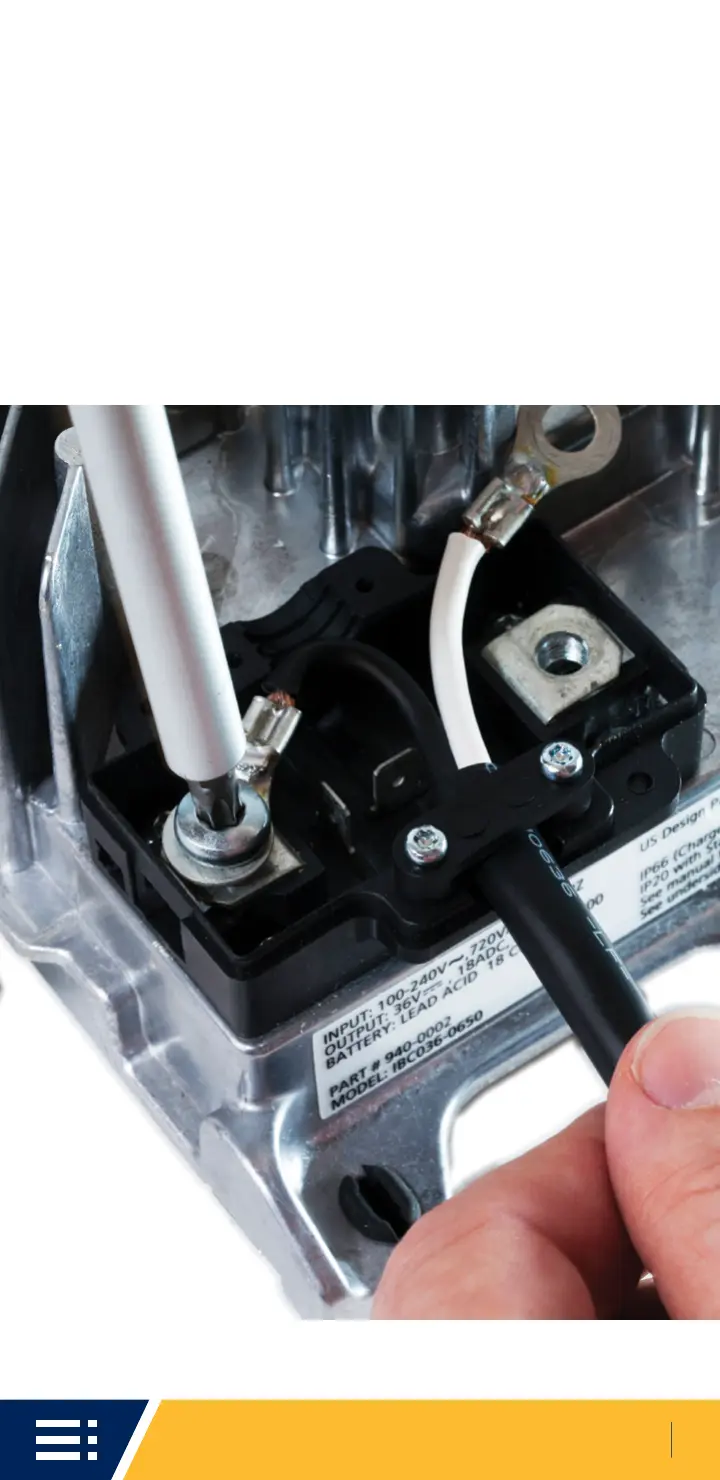

IC650 DC Wiring Instructions
37
2.
Insert the head of the Torx T30 screwdriver
into the gap on the lower right side of the
DC terminal block cover and push the
screwdriver in while pulling up on the
cover to release the right side of the cover.
3.
Lift the cover and remove the bag of parts.
