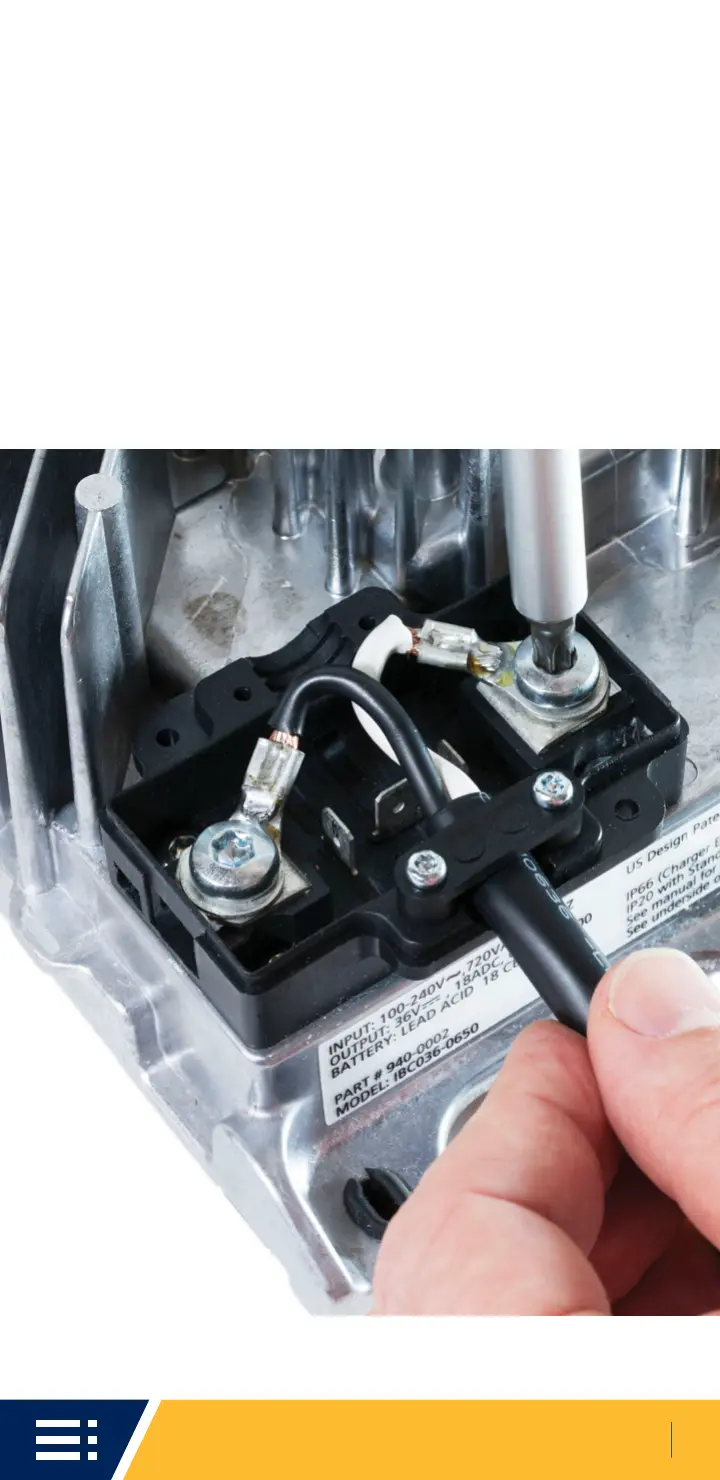

IC650 DC Wiring Instructions
38
4.
Remove the positive and negative battery
fasteners (M6 screws).
5.
Fix the DC cable in place using the supplied
cable clamp.
6.
Fasten with the two longer Torx T10 screws
(supplied) to a recommended torque of
0.6Nm +/-6%.
