1. Remove the blade from the scroll saw.
2. Move the blade lever tension handle (A) Fig. 3, to the
foreword position as shown.
3. Push chuck locking lever (B) Fig. 4 to the rear as
shown. This will release the blade (C) from the upper
chuck assembly (D).
4. Insert long end (F) Fig. 5, of quickset blade changing
wrench into hole (G) in lower blade holder. This will align
wrench (H) with blade holder screw (J). Turn wrench (H)
counter-clockwise. This will release the blade from the
lower chuck assembly.

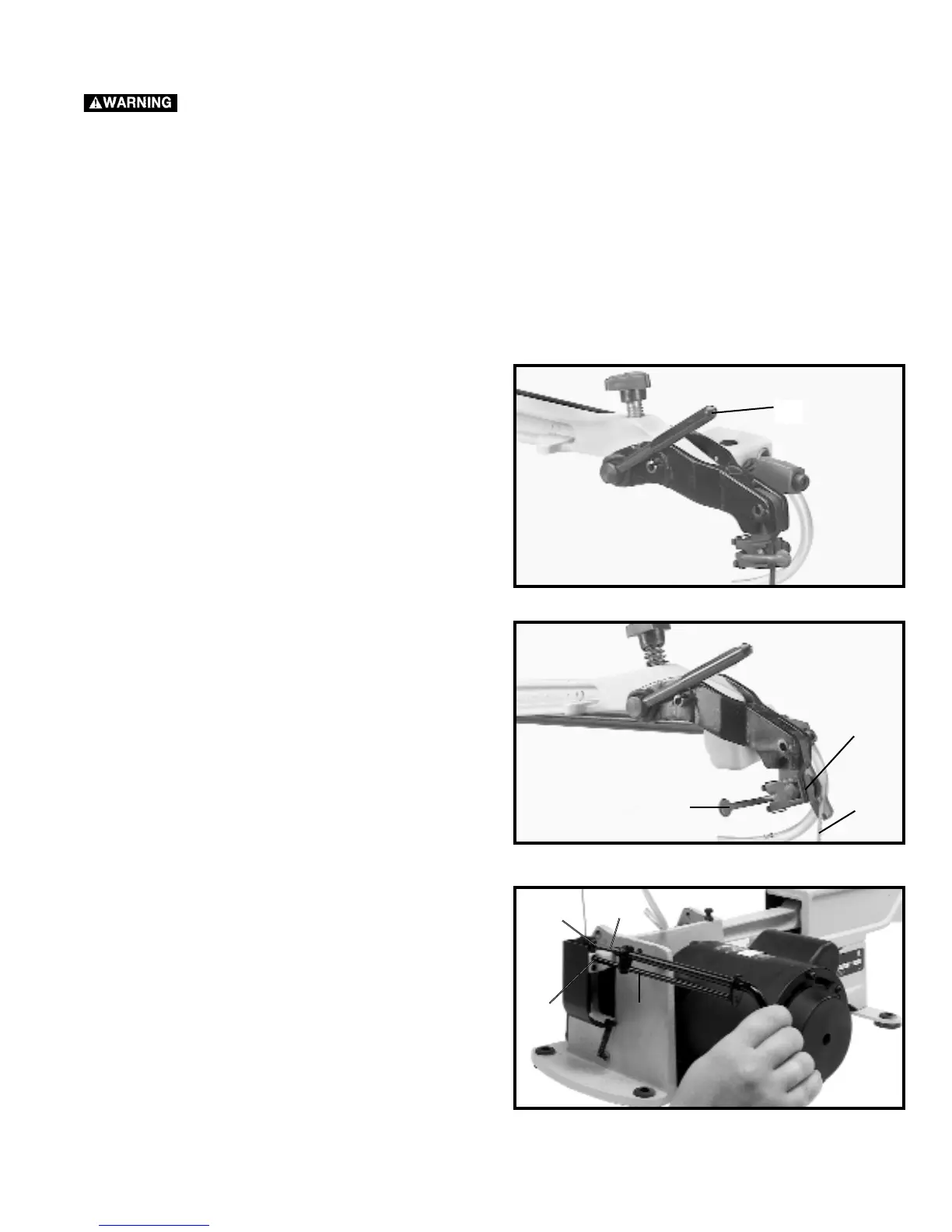

Fig. 3
A
Fig. 4
B
C
D
Fig. 5
F
G
H
J
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
1.) 4mm hex wrench - supplied
2.) Quickset Blade Changing Wrench - supplied
3.) 10mm wrench
Less than one hour
For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.
