9

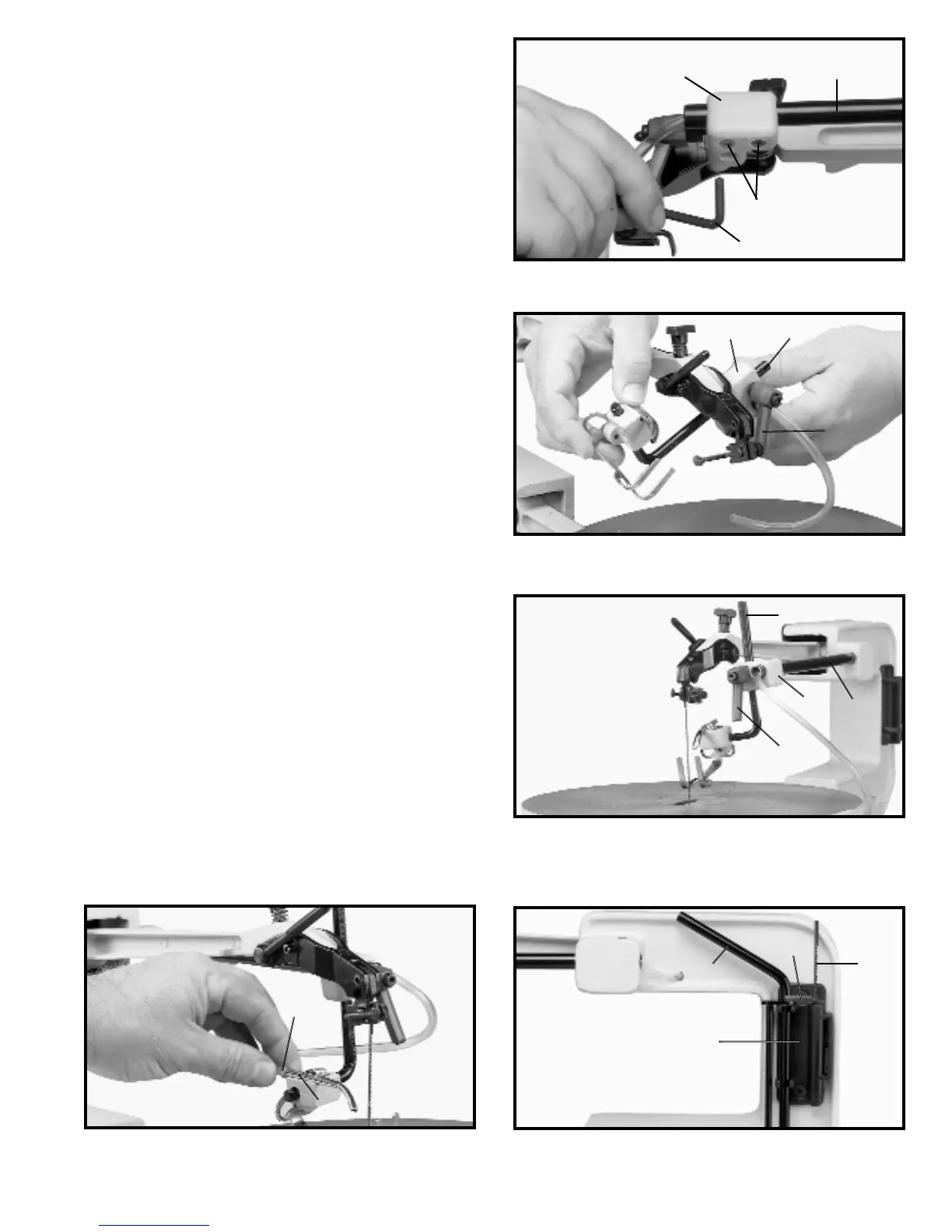

9. Using the 4mm wrench (L) Fig. 11, loosen the two
screws (P) on bottom of bracket (M) that fasten bracket
to rod (N).
Fig. 11
Fig. 12
10. Rotate bracket (M), to the position shown in Fig. 12.
Loosen lock handle (R) and insert holddown rod (S) into
hole in bracket (M), as shown.
R
M
S
11. Rotate bracket (M) Fig. 13, back to its original
position as shown, and tighten the two screws that were
loosened in STEP 9. Then tighten lockhandle (R) to hold
rod (S) in position.
Fig. 13
M
N
S
R
12. Slide end of chip blower tube (T) Fig. 14, onto end of
air nozzle (V), as shown.
Fig. 14
T
V
Fig. 15
13. The tool holder (X) Fig. 15, is used to hold the
quickset blade changing wrench (Y), (for removing blade
from lower blade holder), 4mm allen wrench (W) and
extra blades (Z).
X
Y
W
Z
N
M
P
L
