OPERATIONAL CONTROLS AND ADJUSTMENTS
OPERATION
1. The on/off switches (A and B) Fig. 24 are located on the front of the drill press. To turn the machine “ON”, depress the
“ON” switch.
2. To turn the machine “OFF”, depress the “OFF” switch.
Make sure that the switch is in the “OFF” position before plugging in the power cord. In the event of a
power failure, depress the “OFF” switch. An accidental start-up can cause injury.
STARTING AND STOPPING THE DRILL PRESS

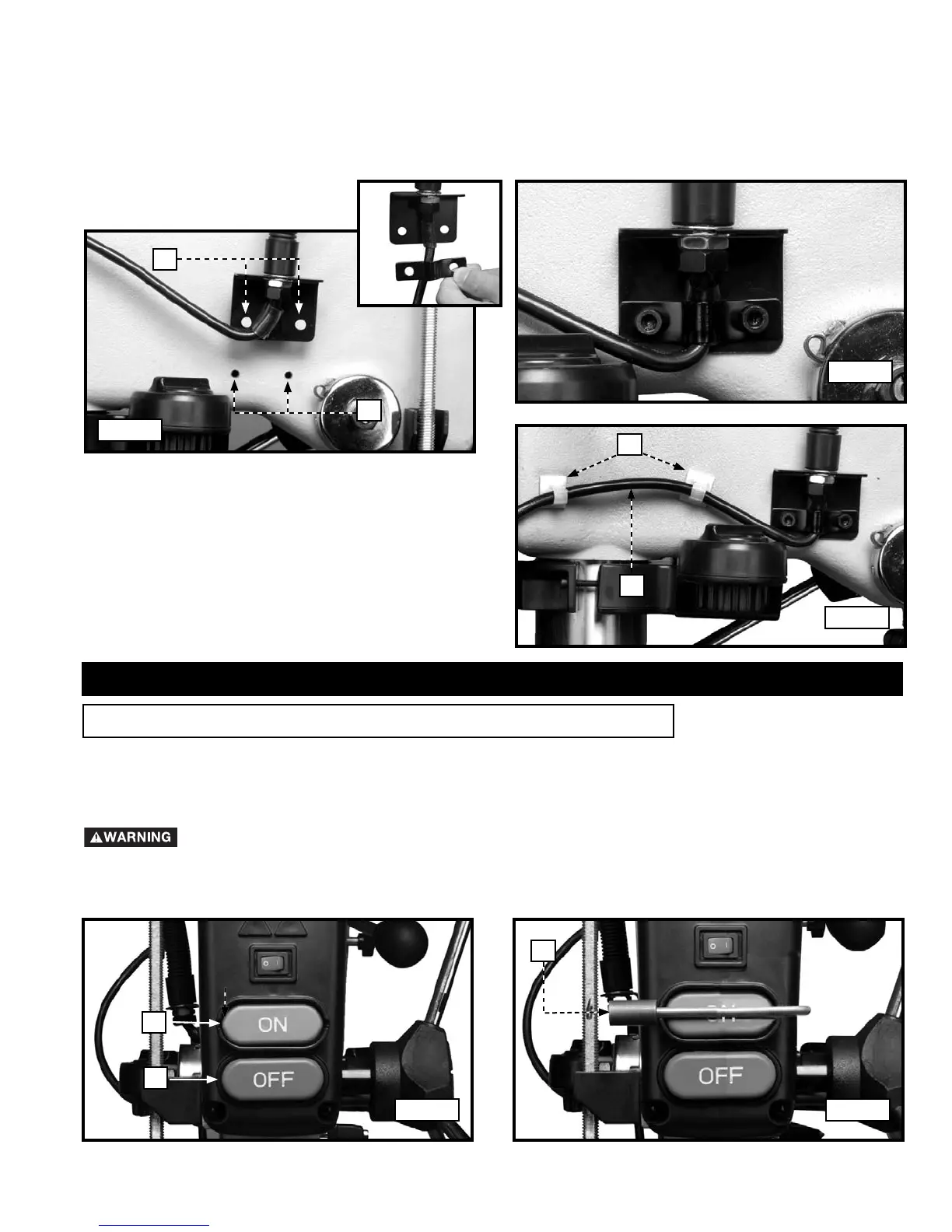

1. Align the two holes in the lamp cord bracket (A) Fig. 21, with the two holes (B) on the side of the drill press head.
2. Place the cord bushing (inset) Fig. 21, around the top of the lamp cord.
3. Align the two holes in the lamp cord bracket with the two holes in the cord strain relief bracket and drill press head.
4. Place a 1/4" washer on an M6 x 1 x 12mm cap head screw. Insert the screw through the hole in the cord strain
relief bracket and the lamp cord bracket. Thread the screw into the drill press head (Fig. 22). Repeat this process
for the remaining hole in the cord strain relief bracket and tighten both screws securely.
5. Peel the backing from the cord clamps (H) Fig. 23,
and apply the clamps at the locations shown. Make
certain that the lamp cord is routed out of the way
of the drill, then secure the cord (J) to cord clamp (H)
Fig. 23.
A
B
H
J
Fig. 21
Fig. 22
Fig. 23
A
B
A
Fig. 24 Fig. 25
IMPORTANT: When the machine is not in use, lock the switch in the “OFF” position to prevent unauthorized use, using a
padlock (A) Fig. 25 with a 3/16" diameter shackle.
ATTACHING THE LAMP CORD BRACKET
