13

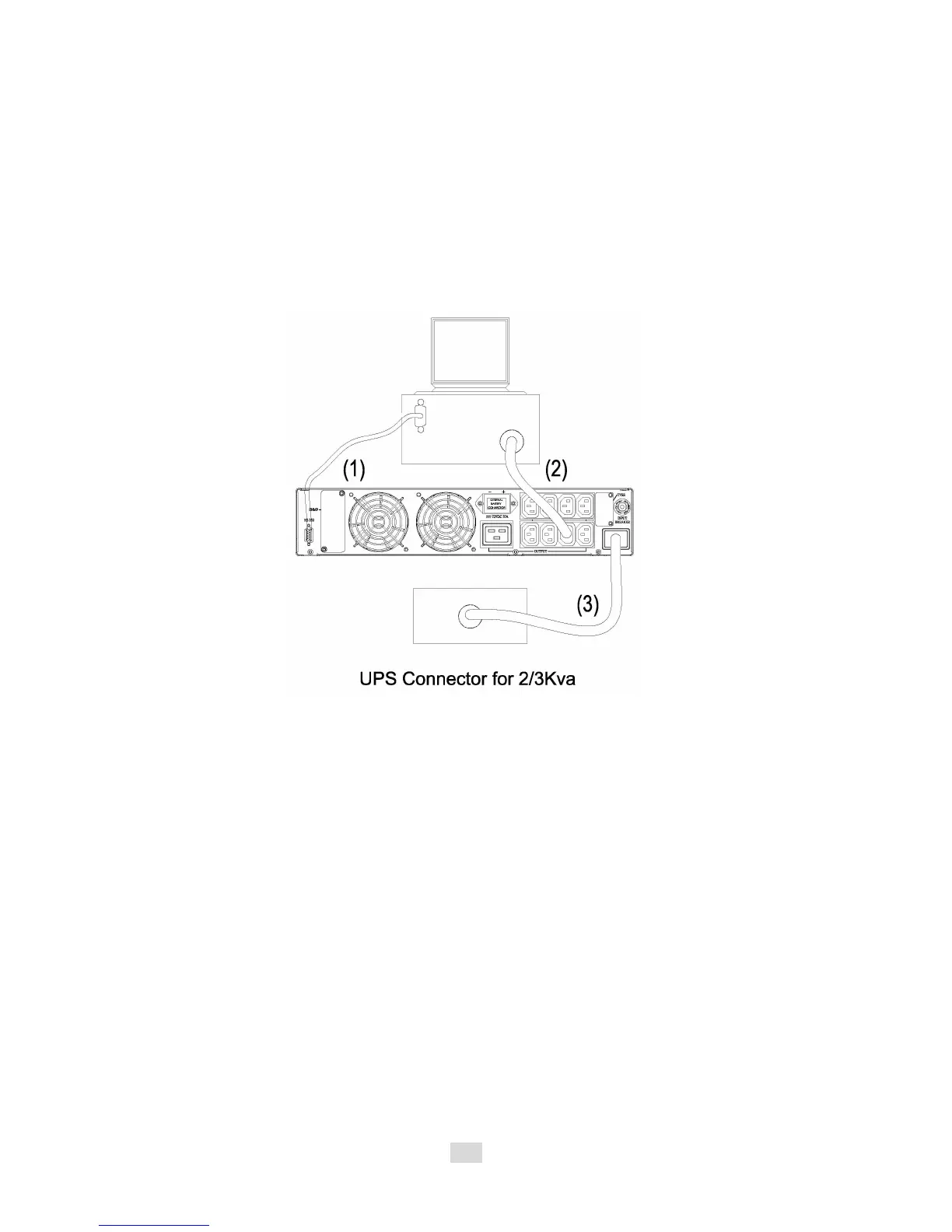

Fig 3-3.2
UPS Connection for 2KVA or 3KVA:
(1) Connected to RS-232 cable
(2) Provides power to PC.
(3) Connected to utility power.
Fig 3-3.2
