Delta 20-142C - Unpacking Machine; Moving Cutting Head to the up Position

7
Moving Cutting Head
To The Up Postion

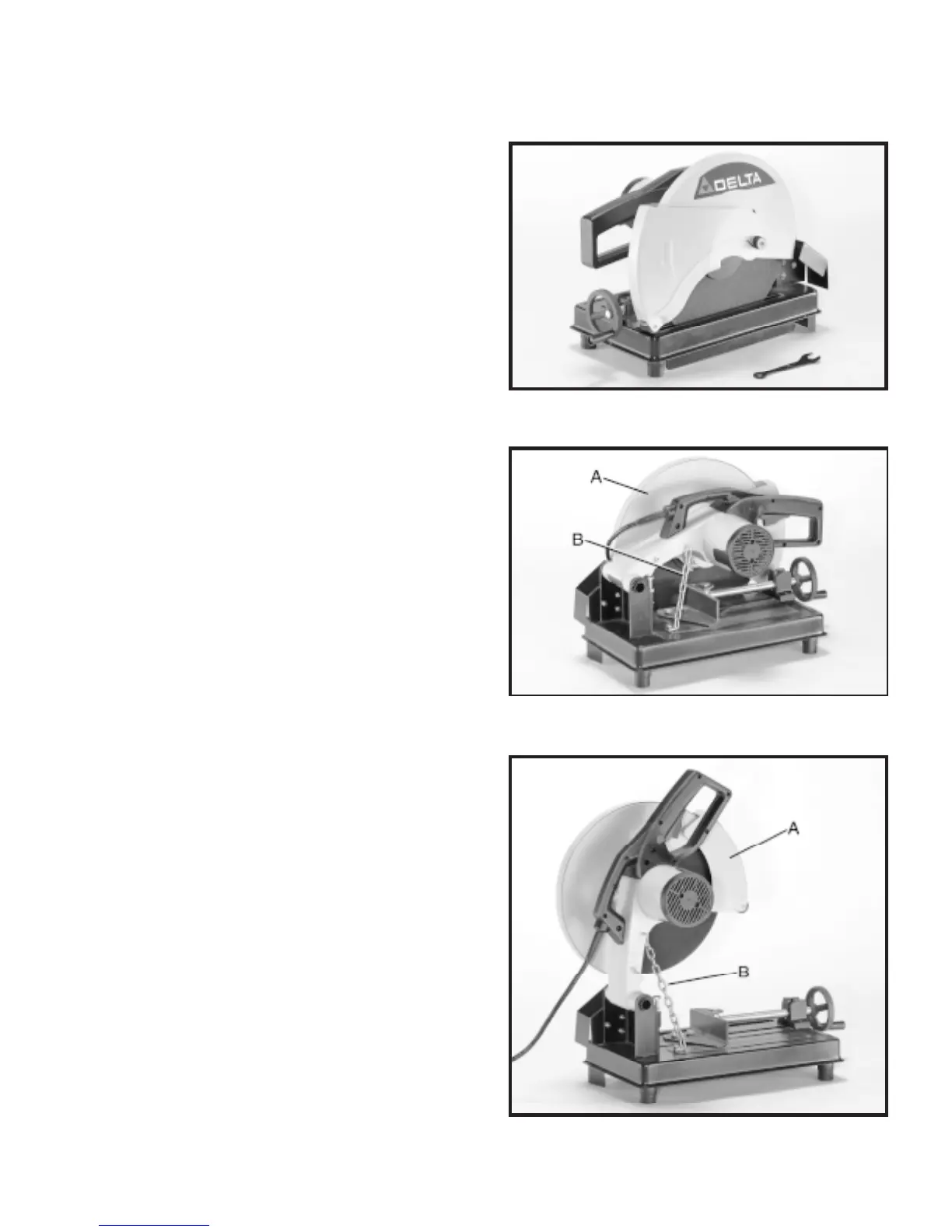

Figure 3
Your new 14” Abrasive Cut-Off Saw is shipped
complete in one carton. Carefully unpack the
saw and all loose items from the shipping con-
tainer.
Figure 4
For shipping purposes, the cutting head (A) has
been clamped in the Down position (against a
foam packing block) by means of the holddown
chain (B).
Figure 5
To move the cutting head (A) to the Up position,
simply unhook the chain (B) from the handle
housing.
Fig. 3
Fig. 4
Fig. 5
UNPACKING MACHINE
