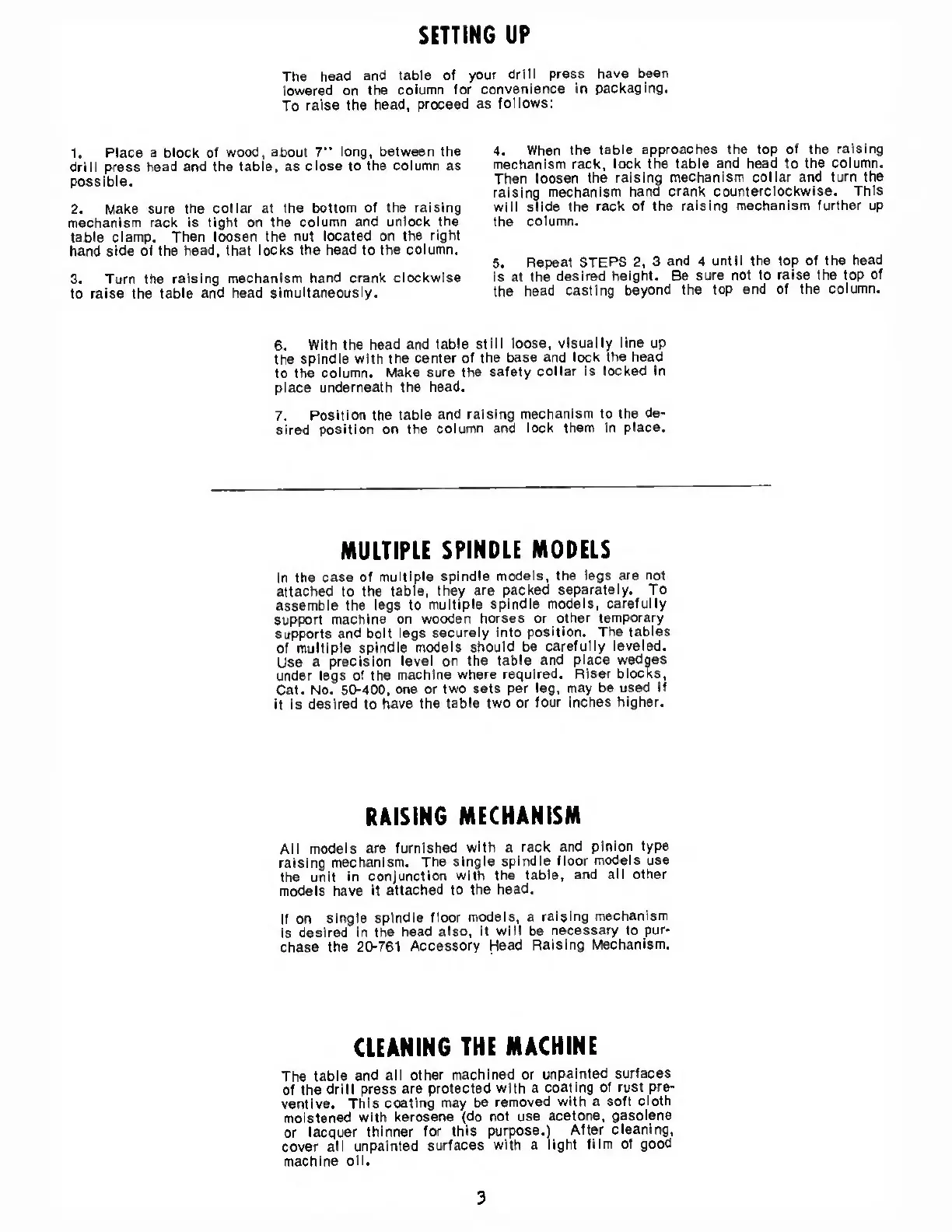

SETTING
UP
The
head
and
table
of
your
drill
press
have
been
lowered
on
the
column
for
convenience
in
packaging.
To
raise
the
head,
proceed
as
follows:
1.
Place
a
block
of
wood,
about
7"
long,
between
the
drill
press
head
and
the
table,
as
close
to
the
column
as
possible.
2.
Make
sure
the
collar
at
the
bottom
of
the
raising
mechanism
rack
is
tight
on
the
column
and
unlock
the
table
clamp.
Then
loosen
the
nut
located
on
the
right
hand
side
of
the
head,
that
locks
the
head
to
the
column.
3.
Turn
the
raising
mechanism
hand
crank
clockwise
to
raise
the
table
and
head
simultaneously.
4.
W
hen
the
table
approaches
the
top
of
the
raising
mechanism
rack,
lock
the
table
and
head
to
the
column.
Then
loosen
the
raising
mechanism
collar
and
turn
the
raising
mechanism
hand
crank
counterclockwise.
This
will
slide
the
rack
of
the
raising
mechanism
further
up
the
column.
5.
R
epeat
STEPS
2,
3
and
4
until
the
top
of
the
head
is
at
the
desired
height.
Be
sure
not
to
raise
the
top
of
the
head
casting
beyond
the
top
end
of
the
column.
6.
With
the
head
and
table
still
loose,
visually
line
up
the
spindle
with
the
center
of
the
base
and
lock
the
head
to
the
column.
Make
sure
the
safety
collar
is
locked
in
place
underneath
the
head.
7.
Position
the
table
and
raising
mechanism
to
the
de¬
sired
position
on
the
column
and
lock
them
in
place.
MULTIPLE
SPINDLE
MODELS
In
the
case
of
multiple
spindle
models,
the
legs
are
not
attached
to
the
table,
they
are
packed
separately.
To
assemble
the
legs
to
multiple
spindle
models,
carefully
support
machine
on
wooden
horses
or
other
temporary
supports
and
bolt
legs
securely
into
position.
The
tables
of
multiple
spindle
models
should
be
carefully
leveled.
Use
a
precision
level
on
the
table
and
place
wedges
under
legs
of
the
machine
where
required.
Riser
blocks,
Cat.
No.
50-400,
one
or
two
sets
per
leg,
may
be
used
if
it
is
desired
to
have
the
table
two
or
four
inches
higher.
RAISING
MECHANISM
All
models
are
furnished
with
a
rack
and
pinion
type
raising
mechanism.
The
single
spindle
floor
models
use
the
unit
in
conjunction
with
the
table,
and
all
other
models
have
it
attached
to
the
head.
If
on
single
spindle
floor
models,
a
raising
mechanism
is
desired
in
the
head
also,
it
will
be
necessary
to
pur¬
chase
the
20-761
Accessory
Head
Raising
Mechanism.
CLEANING
THE
MACHINE
The
table
and
all
other
machined
or
unpainted
surfaces
of
the
drill
press
are
protected
with
a
coating
of
rust
pre¬
ventive.
This
coating
may
be
removed
with
a
soft
cloth
moistened
with
kerosene
(do
not
use
acetone,
gasolene
or
lacquer
thinner
for
this
purpose.)
After
cleaning,
cover
all
unpainted
surfaces
with
a
light
film
of
good
machine
oil.
3
