Before operation, secure the planer to the
supporting surface.
Operate the planer on a at, level surface.
OPERATION
STARTING AND STOPPING THE
PLANER

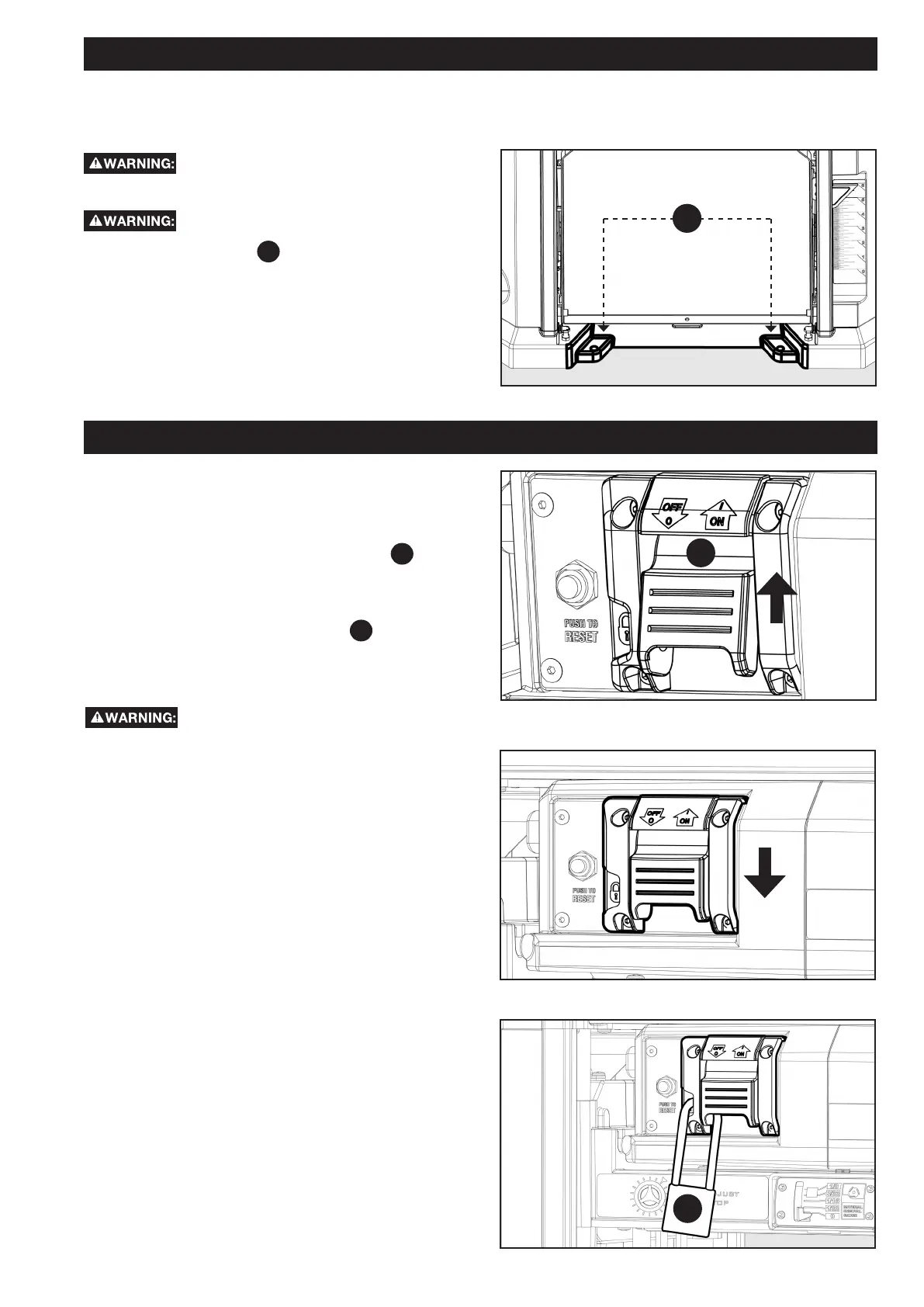

See Figures 10 & 11.
1. To turn the planer “ON”, lift the paddle
F9
. To turn
the tool “OFF”, push the paddle down.
IMPORTANT: When the machine is not in use, the switch
should be locked in the “OFF” position, see Figure 11, to
prevent unauthorized use. Place a padlock
A
with a 1/4 inch
(6.3mm) diameter shackle through the hole on the left side of
the switch cover and through the hole in the switch paddle.
Lock the padlock. See Figure 12.
Ensure the lock is inserted in the holes
correctly which will prevent the switch from being
turned on.
FIGURE 11
FIGURE 12
FIGURE 10
ASSEMBLY
FASTENING THE PLANER TO A
SUPPORTING SURFACE
1. Four mounting holes
A
are provided for mounting the
planer to a stand or work surface. These holes are
located under the in-feed and out-feed tables (two of
which are shown in Figure 9).
FIGURE 9
A
F9
ONON
A
OFFOFF
