Fig. 21
Fig. 22
ADJUSTING UPPER BLADE
GUIDE ASSEMBLY

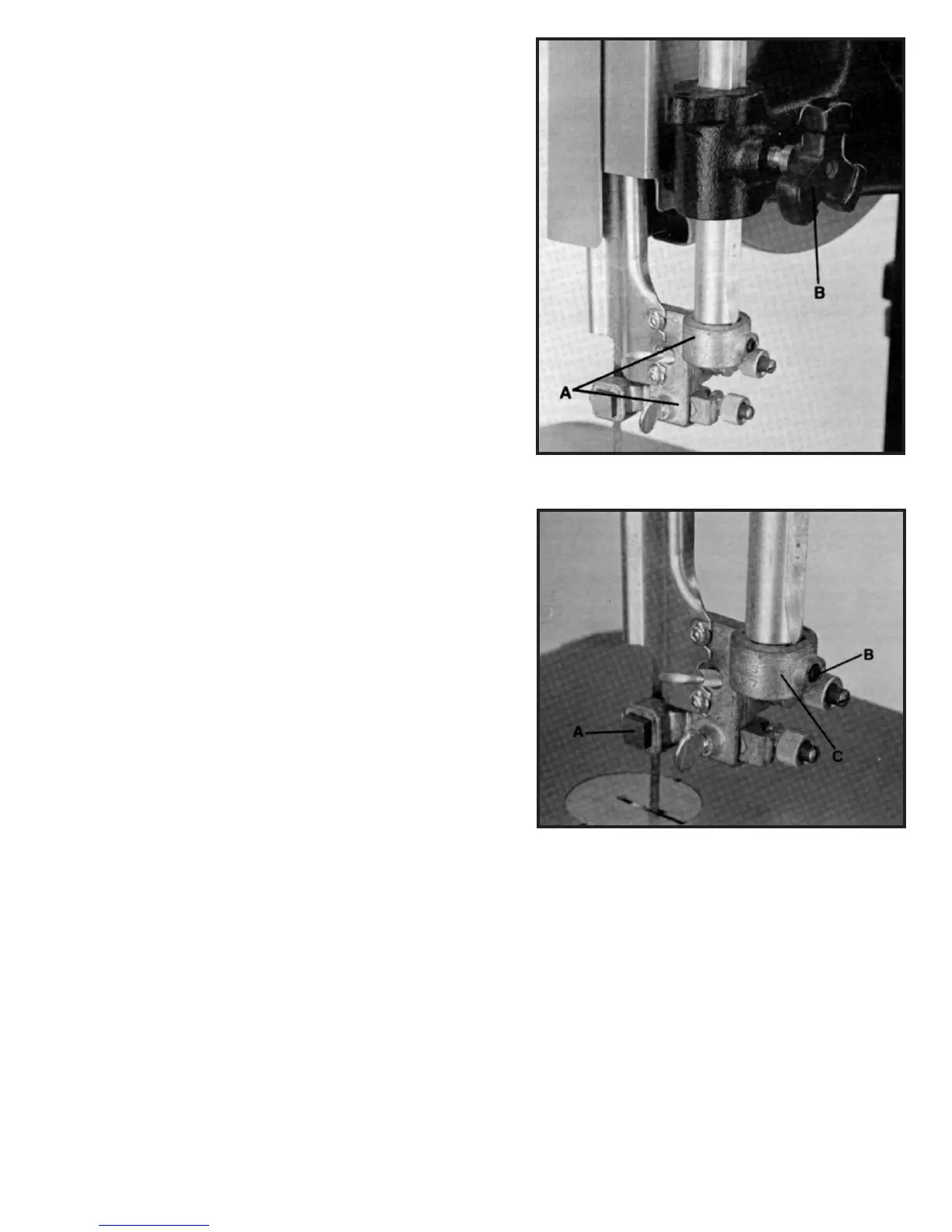

The upper blade guide assembly (A) Fig. 21, should always be
set as close as possible to the top surface of the material being
cut by loosening lock knob (B) and moving the guide assembly
(A) to the desired position.
The upper blade guide assembly should also be adjusted so
that the blade guides (A) Fig. 22, are flat with the blade. If an
adjustment is necessary, loosen screw (B) and rotate the com-
plete guide assembly (C) until the blade guides are flat with the
blade.
