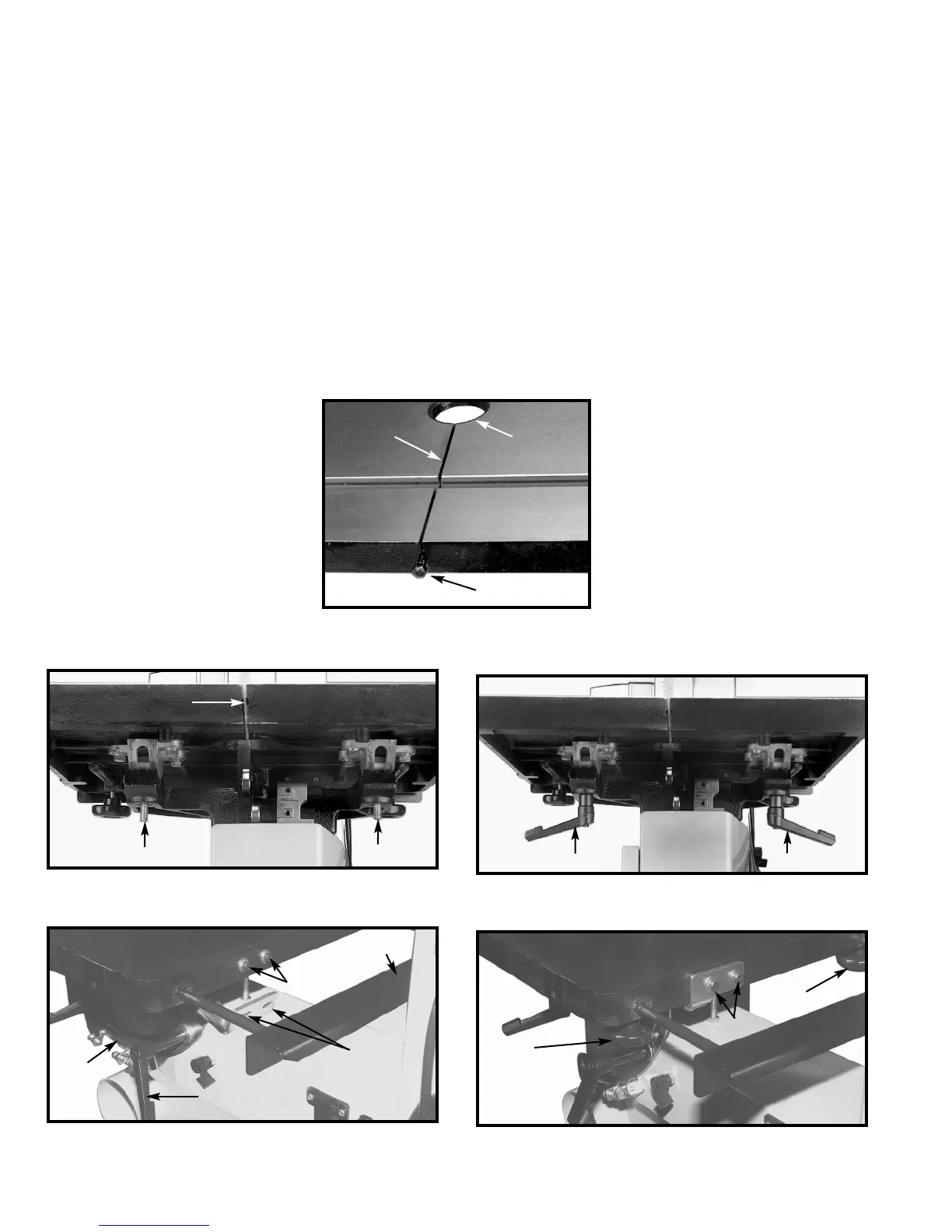

1. Remove the table pin (A) Fig. 5.
2. Align the blade with the table slot (B) Fig. 5. Slide the table until the blade has reached the center cutout (C) Fig.
5, then rotate the table 90 degrees toward the front of the machine.
NOTE: Make sure that the table slot (B) Fig. 6 is facing toward the right of the machine.
3. Align the two table studs (A) Fig. 6, in the bottom of the table, with the two holes in the trunnion assemblies.
4. Thread the trunnion lock knob (D) Fig. 7 onto the table stud. Repeat this process for the other table stud.
5. Pull out on the table extension (G) Fig. 8.
6. Remove the two screws, flat washers, and lockwashers (H) Fig. 8, from the table using the 5mm hex wrench.
8. Loosen the table lock knob (J) Fig. 8.
9. Align the two holes (K) Fig. 8, on the table trunnion (L), with the two holes (H) on the table.
10. Replace the two screws, flat washers, and lockwashers (H) Fig. 8A, that were removed in STEP 6 to attach the
trunnion to the table. Tighten using the 5mm hex wrench
12. Thread the two table extension lock knobs (N) Fig. 8A, into the bottom of the table.
11. Replace the table pin that was removed in STEP 1.
