OPERATIONS

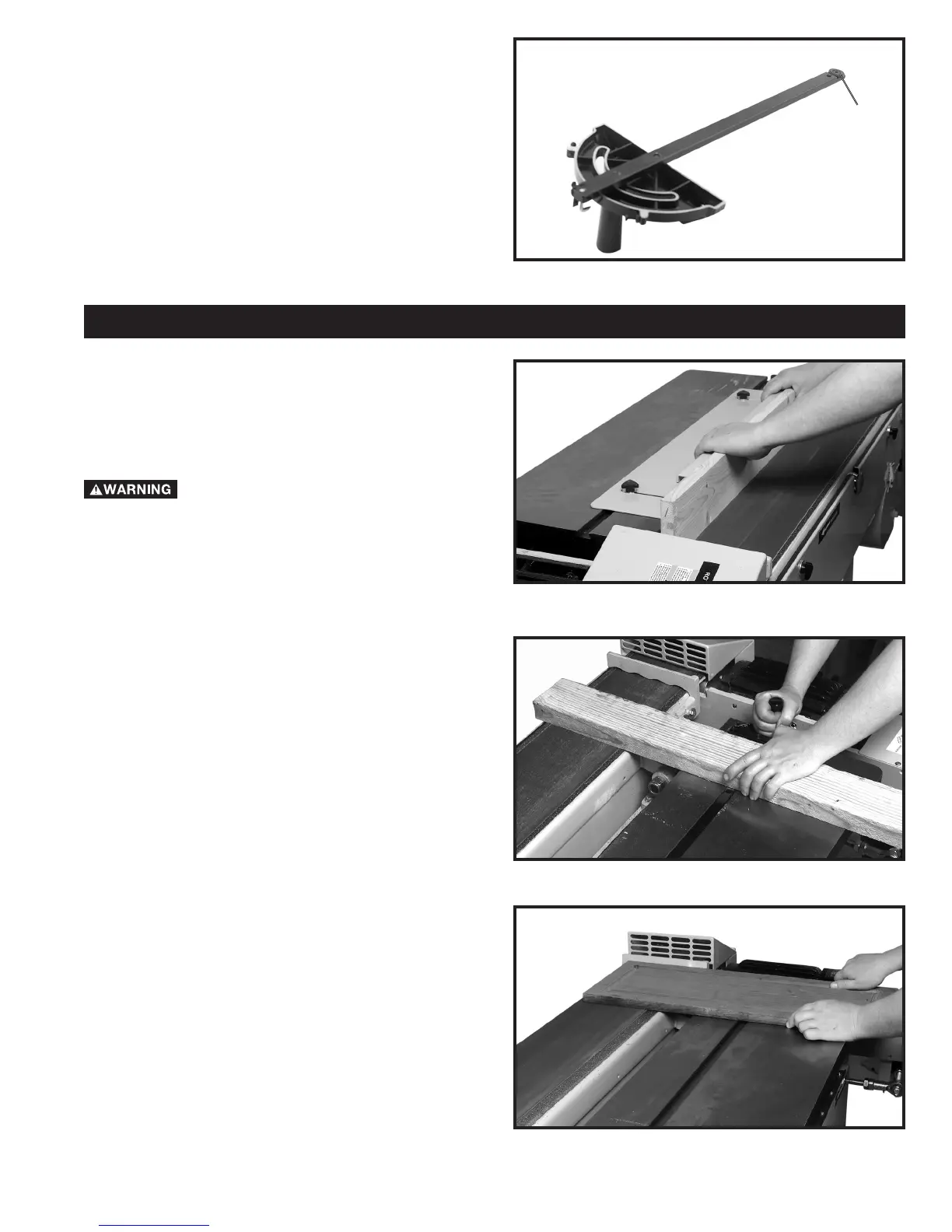

Fig. 47
Fig. 48
The Oscillating Edge Sander can be used to perform
many different sanding operations. The following
examples will show some of the applications that this
machine can be used for.
1. Fig. 48 shows sanding with the fence.
Only use the fence when the belt sander
is at 0 degrees to the table
Fig. 49
2. Fig. 49 shows sanding with the miter gage.
Fig. 50
3. Fig. 50 shows sanding at 0 degrees to the table
with out the fence.
E
4. Your miter gage is equipped with a plate (E) Fig. 47,
which fits into the T-Slot groove in the table. This allows
the miter gage to be pulled off the front edge of the table
without falling.
