11

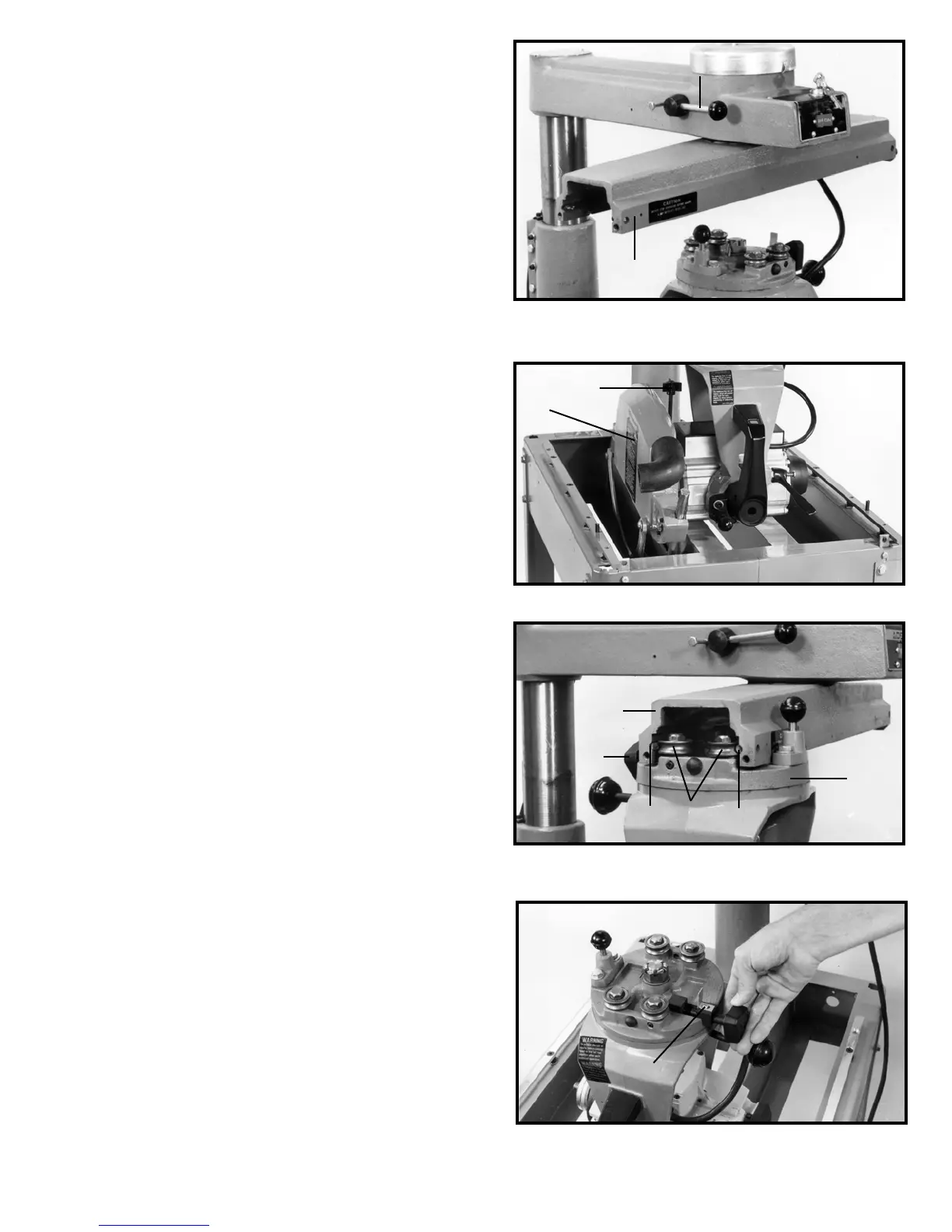

Fig. 8
Fig. 9
Fig. 11
Fig. 10
5. Unscrew and remove blade guard clamping rod and
washer (G) Fig. 9, and remove blade guard assembly (H).
6. Place cuttinghead clamp (J) Fig. 10, in slot on top of
cuttinghead. NOTE: Jaws of cuttinghead clamp must be
open as shown.
7. Lift cuttinghead assembly (B) Fig. 11, and insert
roller bearings (K) into track arm assembly (A) as shown.
NOTE: Make certain the roller bearings (K) are riding on
track rods (L). Push cuttinghead assembly (B) Fig. 11,
into track arm assembly (A) and tighten cuttinghead
clamp (J) Fig. 11.
C
F
G
H
J
A
J
L
L
K
B
3. Push track arm clamp lever (C) Fig. 7, to the rear
until it rests against stop (D) as shown.
4. Pull out on track arm index knob (E) Fig. 7, and
rotate track arm (F) 90° to the position shown in Fig. 8.
Tighten track arm clamp lever (C) Fig. 8, by pulling it to
front position.
