Delta 33-890 User Manual

13

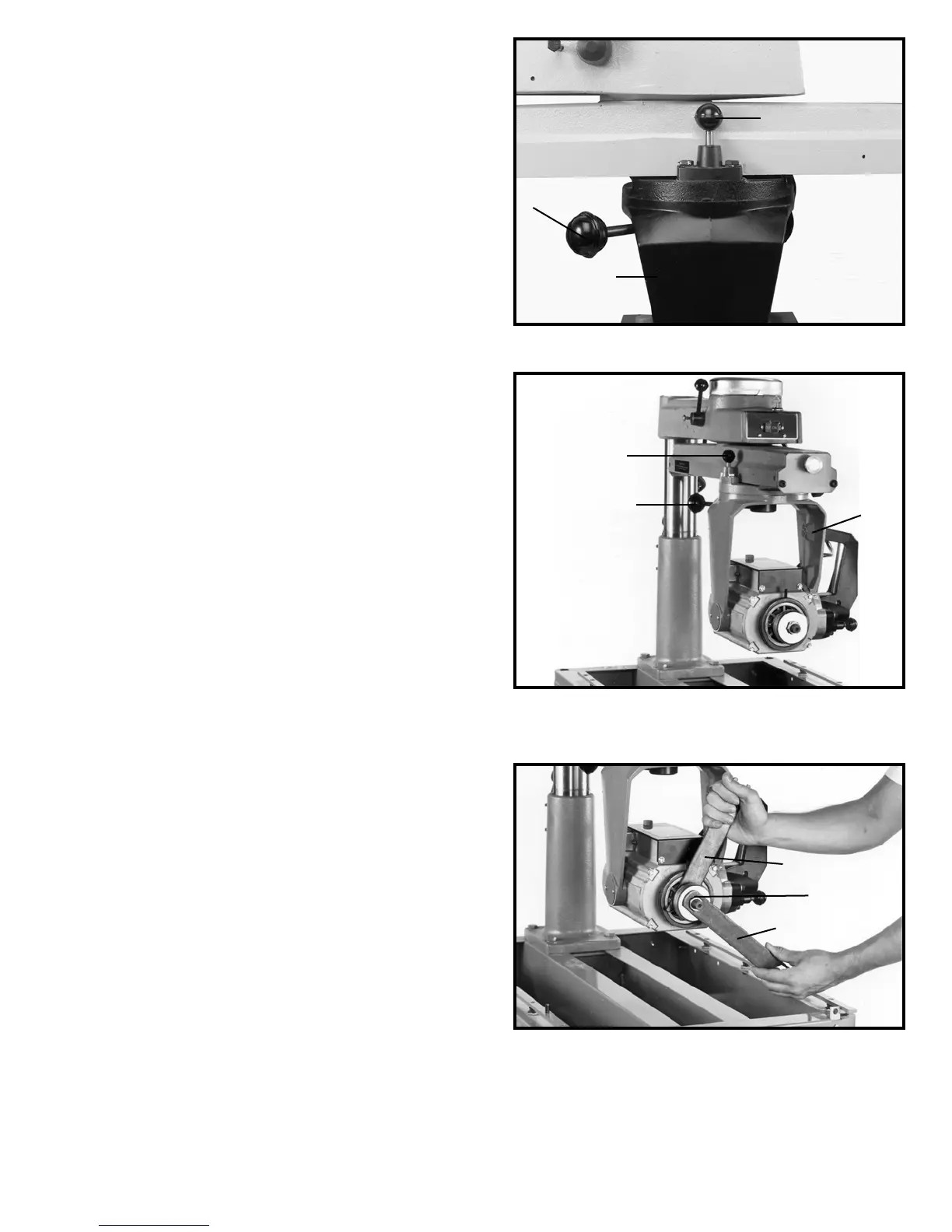

Fig. 16
Fig. 17
Fig. 18
ADJUSTING TABLE BRACKETS
PARALLEL TO TRACK ARM
To perform accurate work, the track arm must be parallel
to the table top brackets at both the front and rear of the
machine. To check if the alignment is correct, proceed as
follows:
1. Loosen yoke clamp locking lever (A) Fig. 16, pull up
yoke clamp index knob (B) and rotate yoke (C) to the out
rip position shown in Fig. 17. Tighten yoke clamp locking
lever (A).
2. Place wrench (D) Fig. 18, on flats of arbor and loosen
arbor nut (E) using wrench (F).
A
C
D
E
F
B
A
B
C
