7
Fig. 8
Fig. 9
Fig. 10
A
B
B
C
D
E

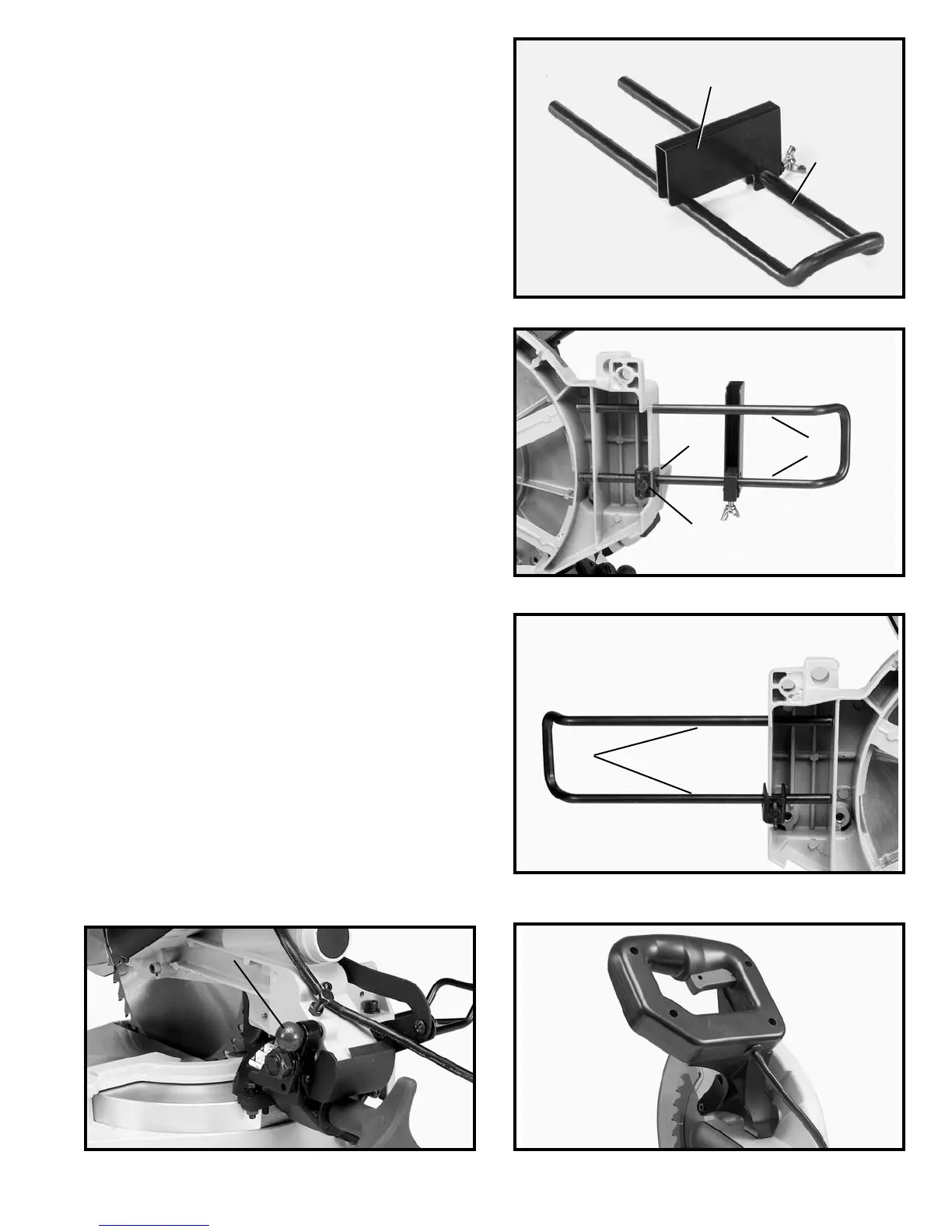

ATTACHING STOCK STOP
AND TABLE EXTENSIONS
1. Decide on which side of the saw table you want the
stock stop (A) Fig. 8, and attach the stock stop (A) on the
table extension (B).
2. Insert the ends of table extension (B) Fig. 9 into the
two holes on the end of the saw base and into the two
holes of retaining bracket (C). Tighten the screw (D) to
hold the table extension in place.
3. Attach the left hand table extension (E) Fig. 10 in the
same manner.
Fig. 11 Fig. 12
MOVING CUTTINGHEAD TO
THE UP POSITION
1. Push down on the switch handle, and pull out the
cuttinghead lock knob (B) Fig. 11.
2. Move the cutting head to the up position (Fig. 12).
B
