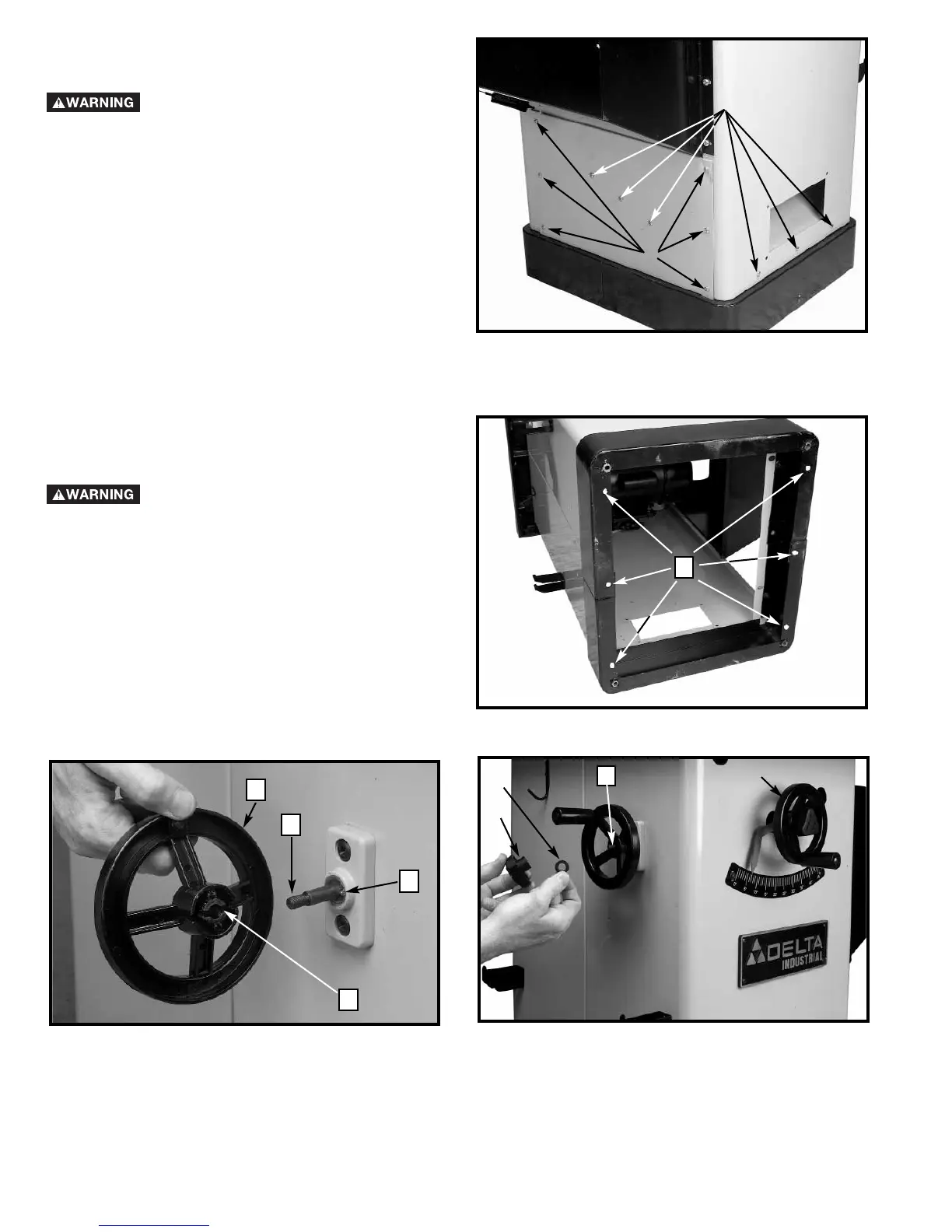

Fig. 4
DISCONNECT MACHINE FROM
POWER SOURCE.
To bolt the saw to a permanent location, remove the
nine screws which secure the dust chute inside the
saw cabinet, six of which are shown at (C) Fig. 4. Also,
remove the side panel below the motor cover by
loosening all six screws (D).
Find the holes (E) Fig. 5 in the bottom of the saw and
mark their position on the floor where you want to
place the saw. Drill pilot holes in these spots and
attach to floor using appropriate hardware.
Reassemble the dust chute and side panel.
BOLTING THE SAW TO FLOOR
Fig. 5
DISCONNECT MACHINE FROM
POWER SOURCE.
Place blade tilting handwheel (A) Fig. 6 on shaft (B) on
the left side of the saw cabinet. Make certain slot (C) in
handwheel is engaged with roll pin (D) on the shaft.
Place nylon washer (E) Fig. 7 on shaft then thread
locking knob (F) Fig. 7, on shaft (G) and tighten securely.
Attach blade raising handwheel (H) Fig. 7 in the same
manner.
BLADE TILTING AND RAISING
HANDWHEELS
Fig. 6
Fig. 7
C
D
E
A
B
C
D
E
F
G
H
