DISCONNECT MACHINE FROM
POWER SOURCE.
First, lift motor and remove foam packing block from
around motor.

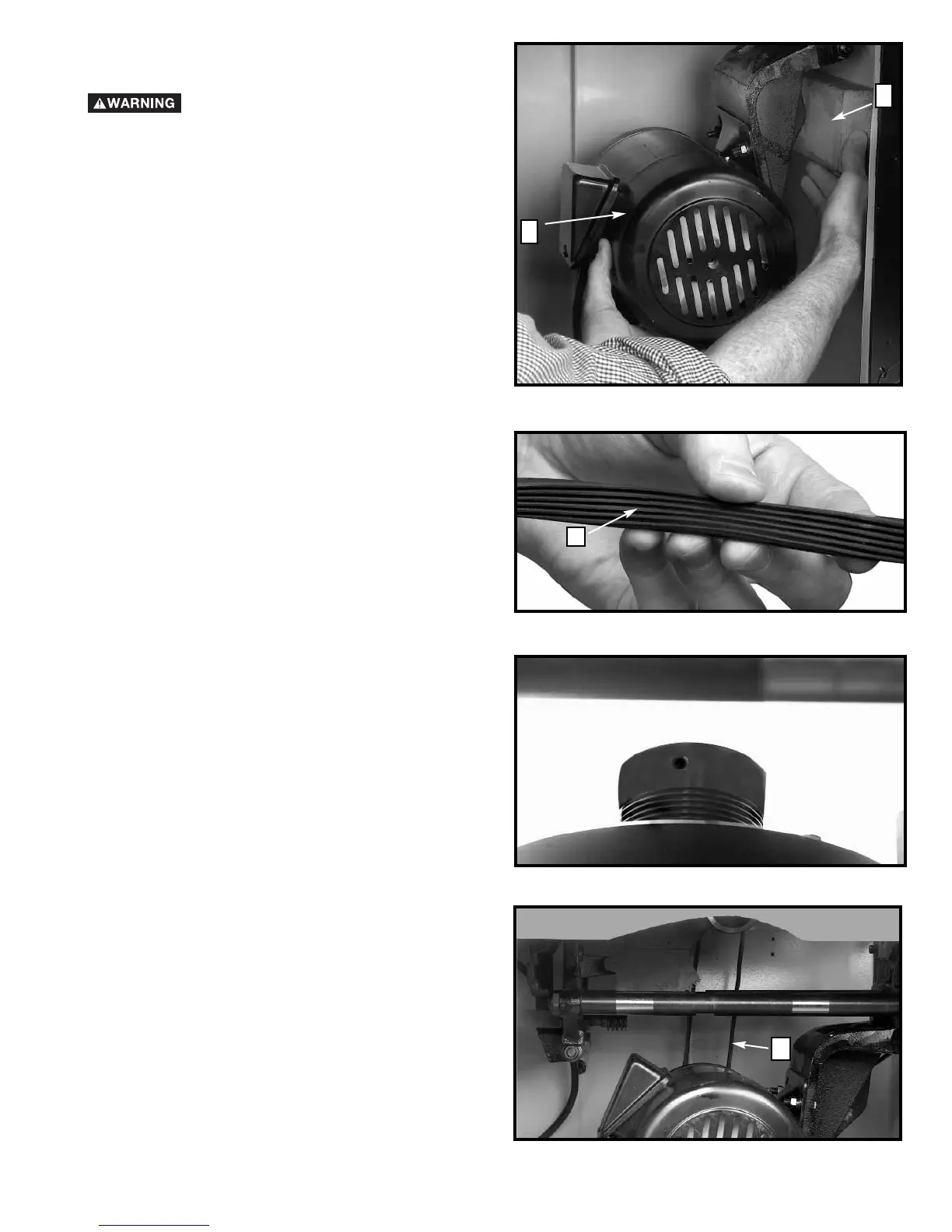

While lifting motor (A) Fig. 8, place a 10-12 inch long
piece of 2x4, or another similar thickness of wood, (B)
Fig. 8 as shown. This will help prop up the motor and
will make it easier to install the grooved belt, (C) Fig. 8A.
Place grooved belt (C) Fig. 8A in grooved pulley located
behind the motor (shown in Fig. 8B) and the one directly
above, located on the opposite end of the blade arbor.
Ensure that the grooves of the belt completely make
contact with the grooves in these pulleys.
Carefully lift motor and remove the block of wood. The
weight of the motor will provide the correct tension on
the belt.
The belt (D) Fig. 8D is shown installed correctly as seen
through the open door in the side of the saw.
INSTALLING DRIVE BELT
Fig. 8D
D
Fig. 8
A
B
Fig. 8A
Fig. 8B
C
11
