Delta AC MAX User Manual

v1.0.0
20

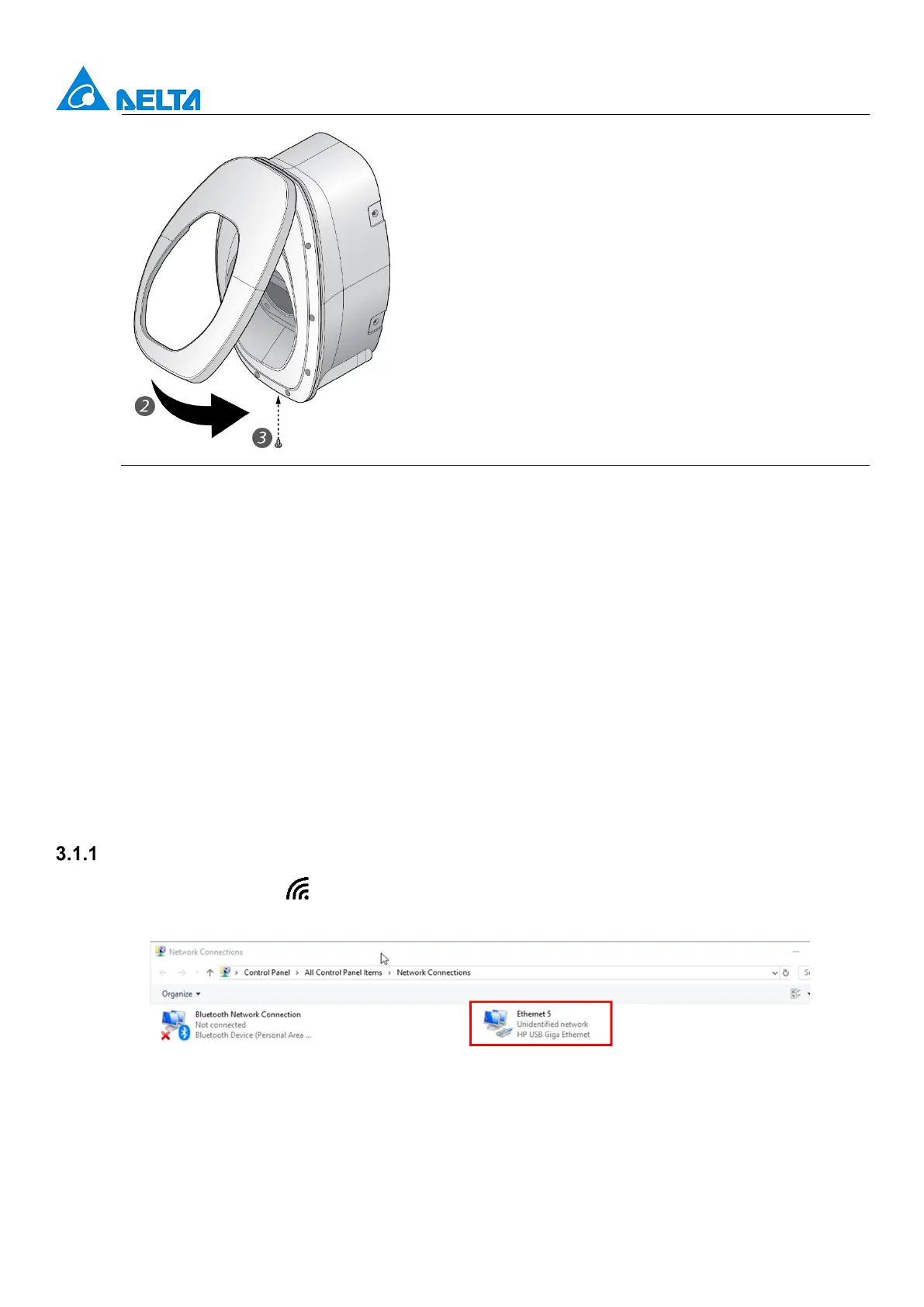

2. Recover the front cover on the EVSE.
3. Secure the screw located at the bottom of front cover by
using a Torx T20 screwdriver.
Torque: 0.5 N·m (4.4 lb·in)
3 Commissioning
AC MAX can use the Web Configuration Tool to do the configuration, firmware upgrade, log download, etc.
General process:
1. Finish the installation process and power on the EVSE.
2. Connect to the EVSE with your Laptop or smart phone. If using the Ethernet connection, please finish the
connection during installation process.
3. Configure the EVSE based on following instruction, and click the button “Save and Restart Charger” if
needed.
4. Start to charge your EV with operating instruction.
3.1 Connection setting
Through “Ethernet” connection
1. Click network icon in the Taskbar. Open “network and internet setting” and choose the connected
network.
