Delta AC MAX User Manual

v1.0.0
8

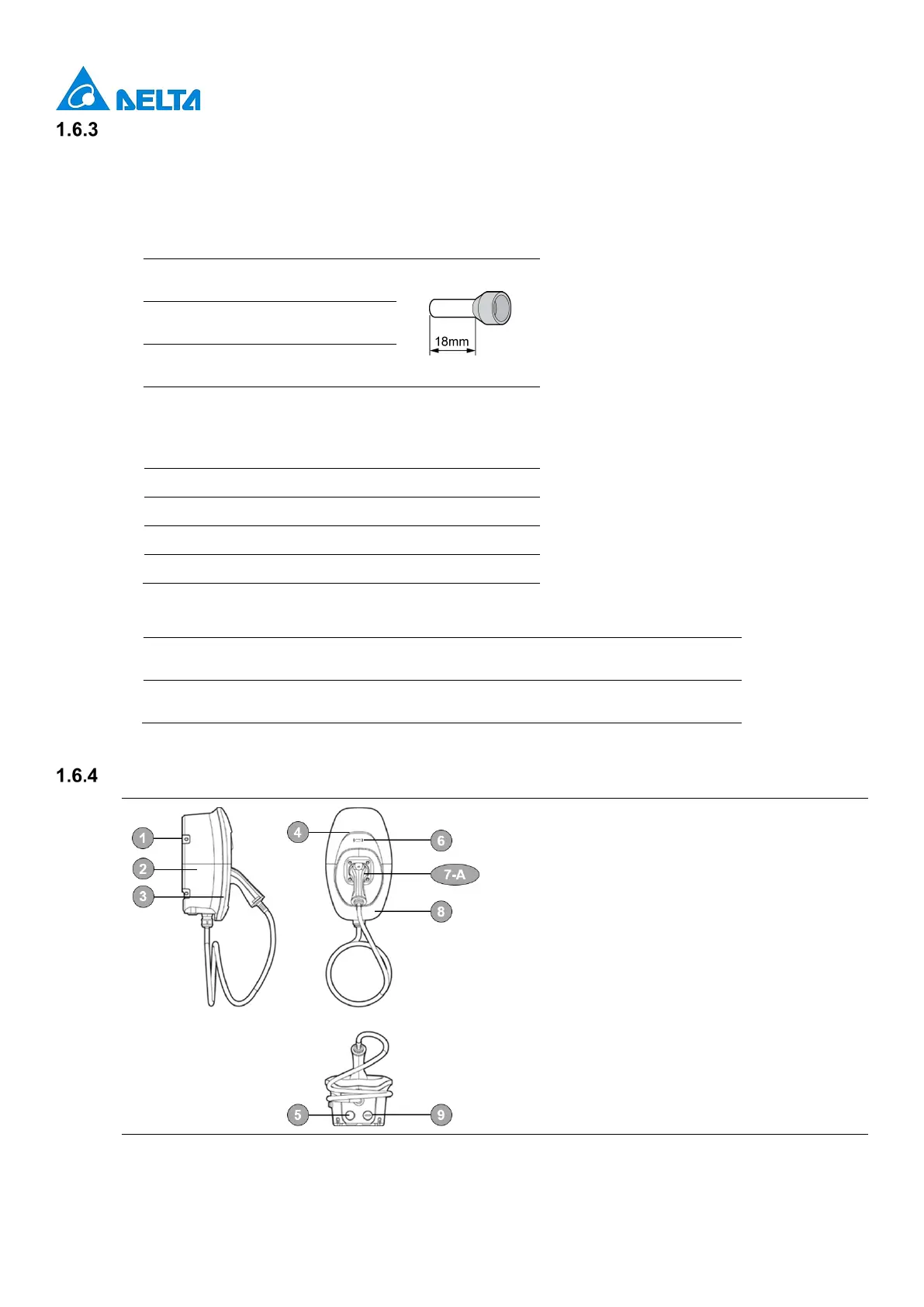

Installer-supplied components
Installers may prepare the following parts:
1. Conduit of appropriate size or cable gland (M32) for input power wires to ensure the water resistance.
2. DIN 46228-4 Cord end terminal:
Please use the cord end terminal for split conductors while installation.
Current 16A 32A
Pin length 18mm 18mm
Wire range
4mm
2
10mm
2
3. Upstream breakers:
To reduce the risk of fire, only connect to a circuit with circuit breaker conforming to IEC 60898-1.
Model Circuit breaker specification
EIAW-E7K 40A min., 230V min., 2 poles, Type B
EIAW-E11K 20A min., 400V min., 4 poles, Type B
EIAW-E22K 32A min., 400V min., 4 poles, Type B
4. SIM card:
SIM card Width Height Depth 4G support band
Micro SIM 15 mm 12 mm 0.76 mm Band 1, Band 3, Band 7, Band 8, Band 20
Overview of components
1. Mounting bracket
2. Body
3. Middle cover
4. LED bar
5. Cable gland
6. RFID reader
7-A. Vehicle connector
7-B. Socket/ socket with shutter
