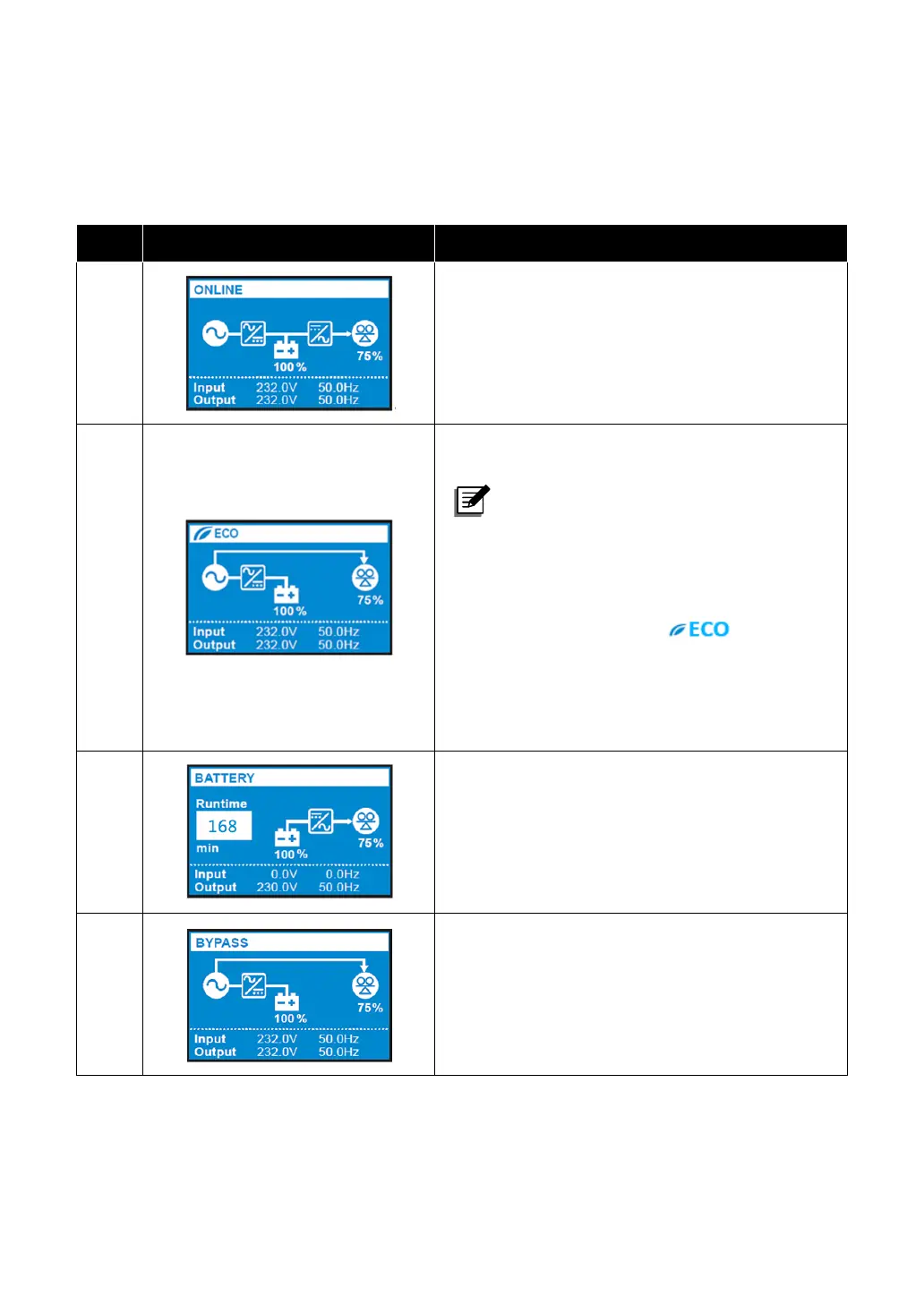

3.3.2 Operation Mode Diagram Definition
The operation mode diagrams are listed below. For more information, refer to
Chapter
9.4
.
No. Operation Mode Diagram Description
1
Indicates
online
mode.
2
Indicates
ECO
mode.
NOTE:
In ECO mode, the power flow
diagram will change according to the
UPS’s input voltage and frequency.
However, the icon ( ) shown
in the upper-left corner will not
change even if the UPS transfers to
online mode or battery mode.
3
Indicates
battery
mode.
4
Indicates
bypass
mode.
