Delta Amplon RT Series - Rear Panel; Rear Panel Ports and Connections

Amplon RT Series 21
Chapter 4: Rear Panel
Models: UPS103R6RT2N035/ UPS103R6RT2N0B0

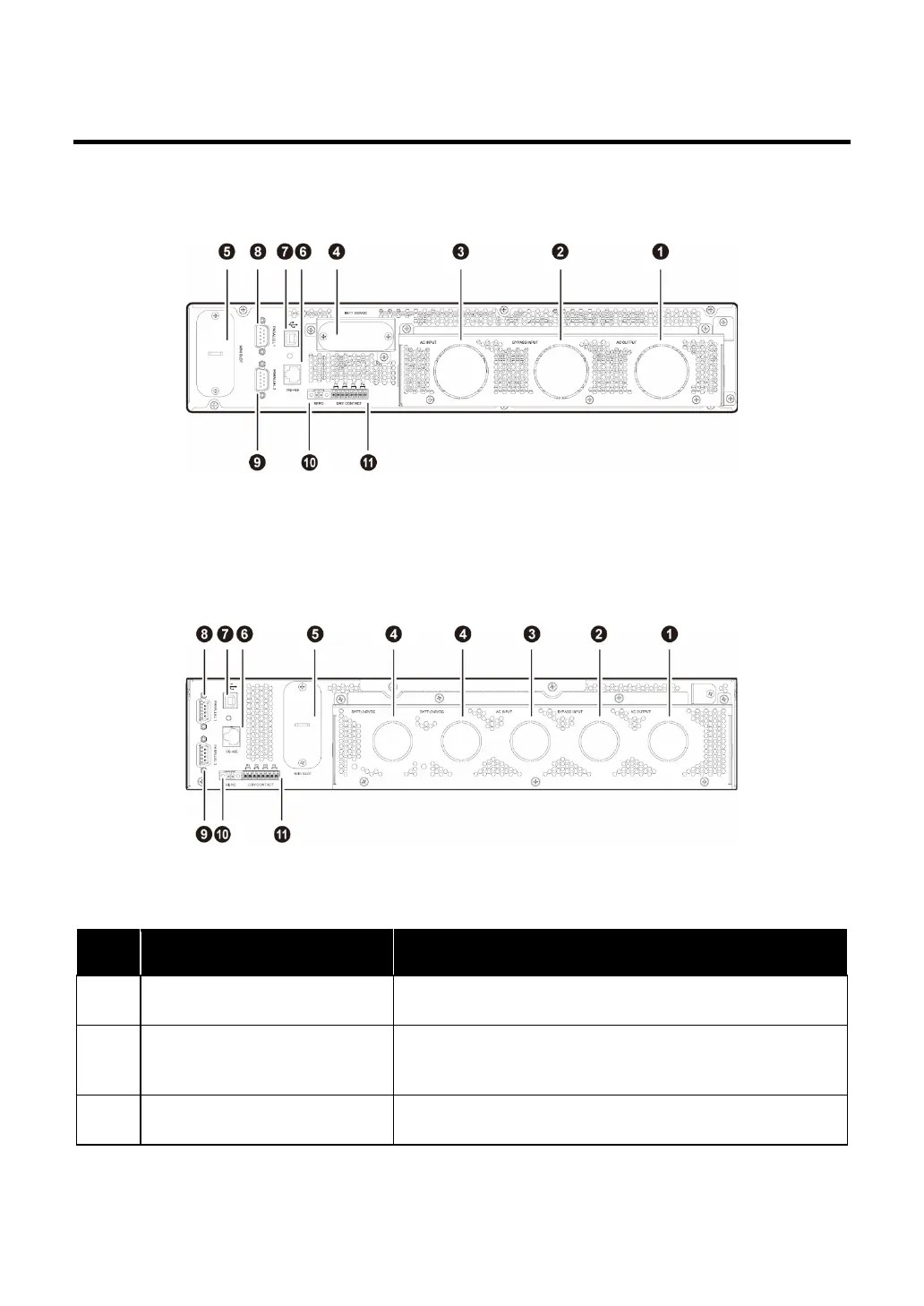

(Figure 4-1-1: RT-10K3P UPS_ Rear Panel)
Models: UPS153R6RT2N035/ UPS203R6RT2N035/ UPS153R6RT2N0B0/ UPS203R6RT2N0B0
(Figure 4-1-2: RT-15K3P/ RT-20K3P UPS_ Rear Panel)
No Item Function
1
AC Output Terminals*
1
Connected to the loads.
2
Bypass Input Terminals*
1
Connected to the bypass AC source.
3
AC Input Terminals*
1
Connected to the main AC source.
