Delta Amplon RT Series User Manual

Amplon RT Series 75
8.5.1.2 Connection to the Delta Lithium-ion Battery Pack (Height 2U,
Optional) for RT-10K3P UPS
Please follow the instruction below and refer to the Delta lithium-ion battery pack’s User Manual
to perform battery connection.
To connect the Delta lithium-ion battery pack, plug the battery cable into the battery connector, and
use the screws and standoffs to firmly fix the battery cable. Then, use the RS-485 cable
*
1
to
connect the UPS and the battery pack.
The battery cable, screws, standoffs and the RS-485 cable are provided in the package of the
battery pack.

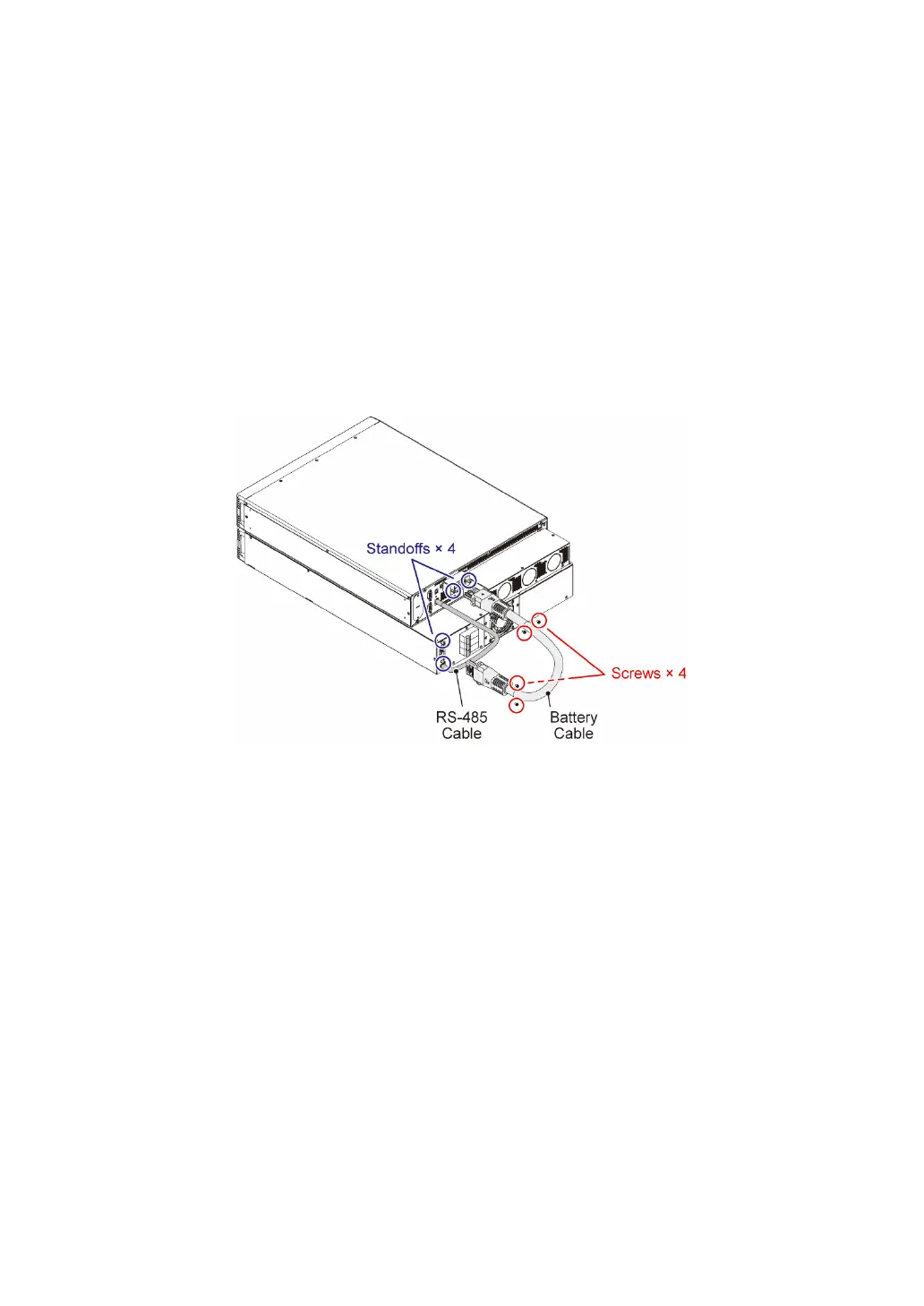

(Figure 8-2: Connect the RT-10K3P UPS with the Delta Lithium-ion Battery Pack)
8.5.1.3 Connection to the Delta Lead-acid Battery Pack (Height 3U,
Optional) for RT-15K3P and RT-20K3P UPS
For connection to the Delta lead-acid battery pack, the battery cables and cable glands are installed
on the UPS before the UPS is shipped*
1
, as shown in Figure 8-3.
