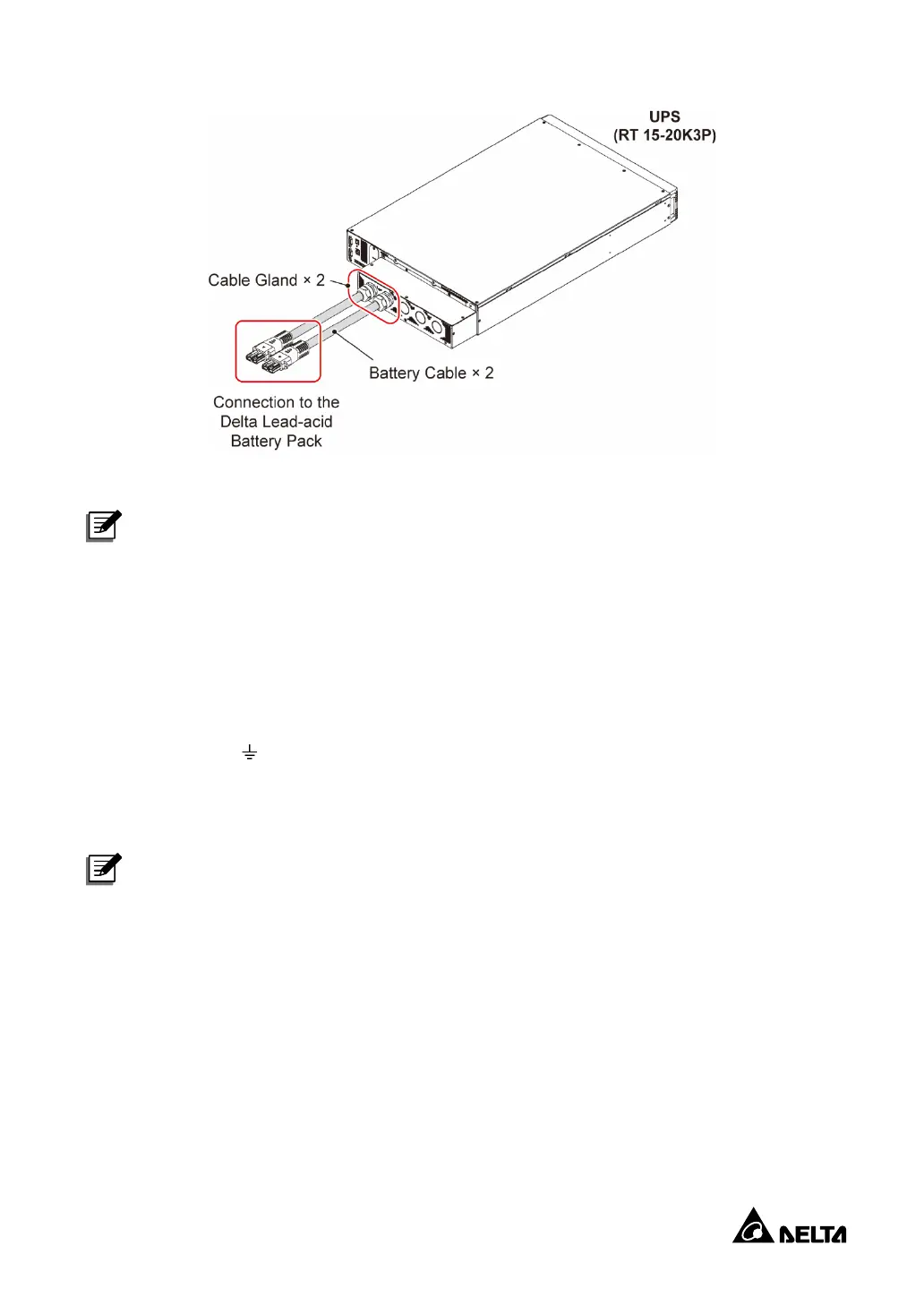

(Figure 8-3: Battery Cables and Cable Glands Installed before Shipment)
NOTE:
*
1
This depends on different UPS model requirements. Please refer to below for more
information.
As the Delta lead-acid battery pack is optional, if the UPS model purchased by users does not have
battery cables and cable glands installed on the UPS
before shipment, the two battery cables
*
1
will
need to be connected to the UPS’s wiring terminals (including the battery input terminals and
grounding terminal (
)) according to the instructions of the Delta lead-acid battery pack’s
User
Manual
. For details about the UPS’s wiring terminals, please refer to
Chapter 7.3
. Note that the
connection should be performed by qualified service personnel.
NOTE:
*
1
The battery cables are provided in the UPS’s package but users should prepare the
cable glands.
After connection to the UPS’s wiring terminals, please follow the instruction below and refer to the
Delta lead-acid battery pack’s
User Manual
to perform the battery connection.
For each Delta lead-acid battery pack, plug the battery cable into the connector. Use two screws
and two standoffs to firmly fix the battery cable.
