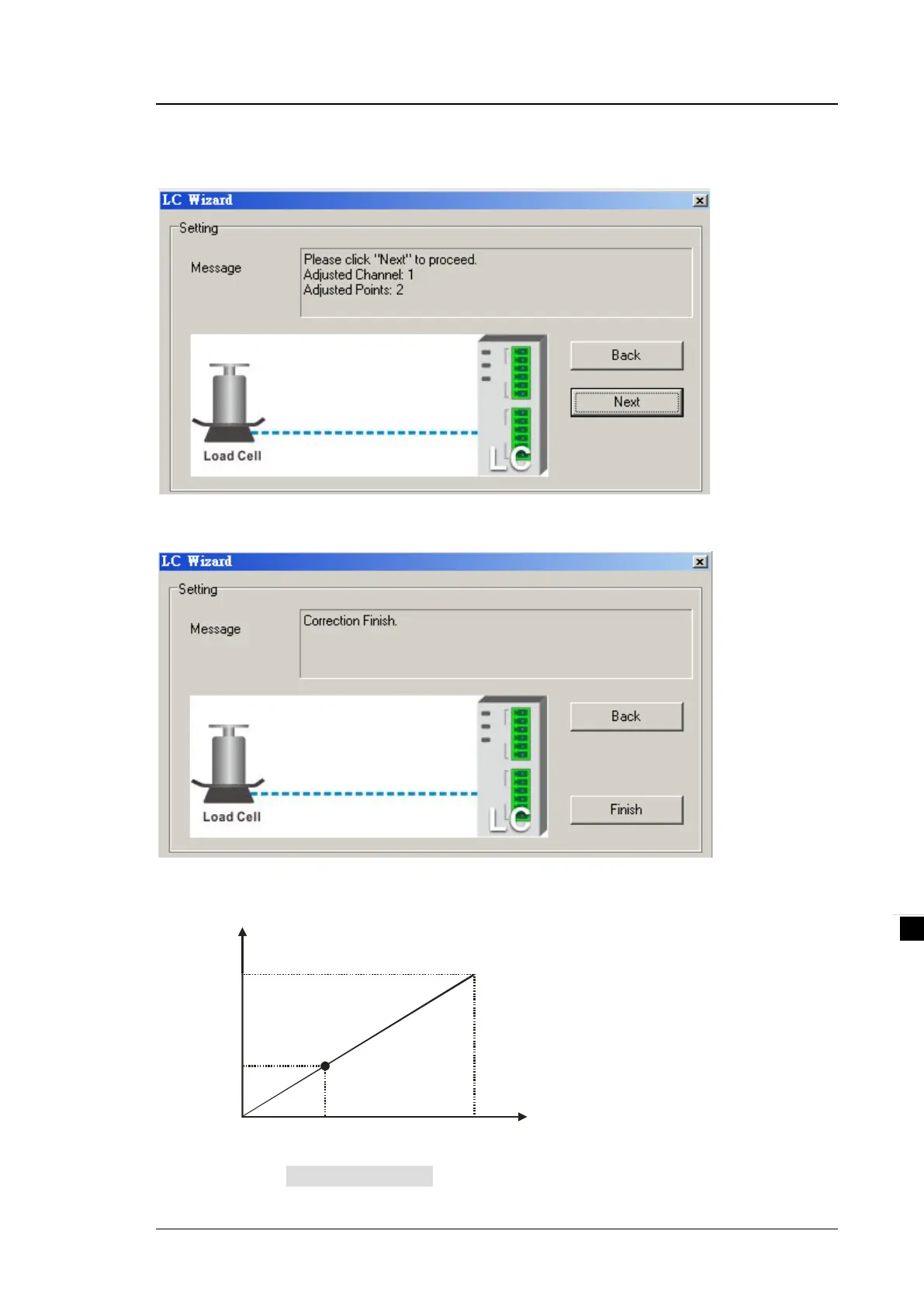

Step 7: Put a load on the load cell (adjustment point 2). For multi-point adjustment, repeat this step. This
example uses a 1 kg weight.
Step 8: the calibration is complete.
A characteristic curve is shown below.
Digita l val ue
Point
1000 1000 00
1 k g
10 kg
Adju sting two points
Weight
