Delta AS04SIL-A

AS Series Module Manual
11-48
11
11.4.10.4. Baud Rate Setting of When AS01DNET-A is in Master Mode

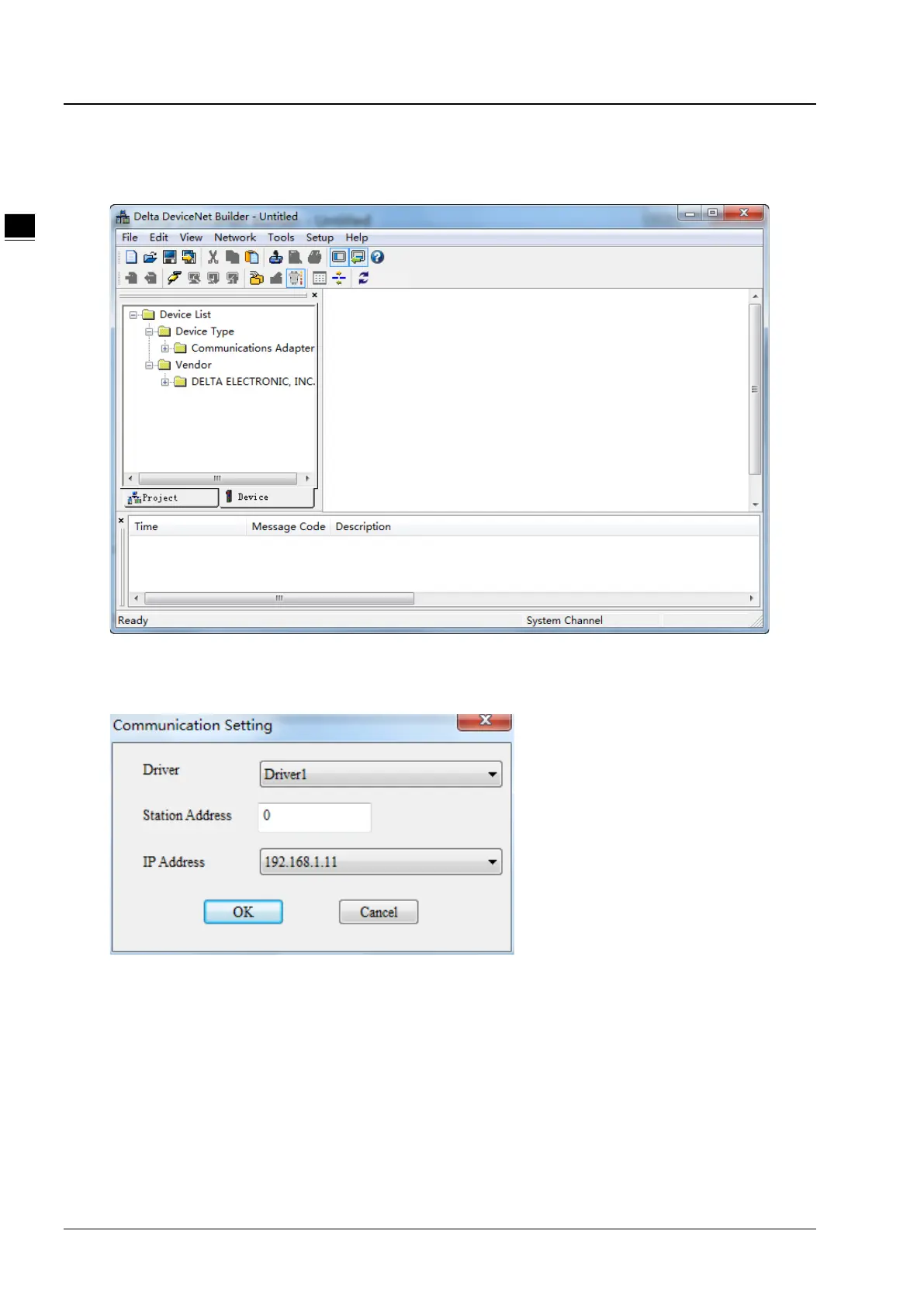

1. Opening the DeviceNet Builder software, the following window appears.
2. Selecting Setup>> Communication Setting, the following dialog box appears. Select the driver for connection of
AS PLC and PC as below. Click OK to finish the selection of Driver.
