Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-41
1

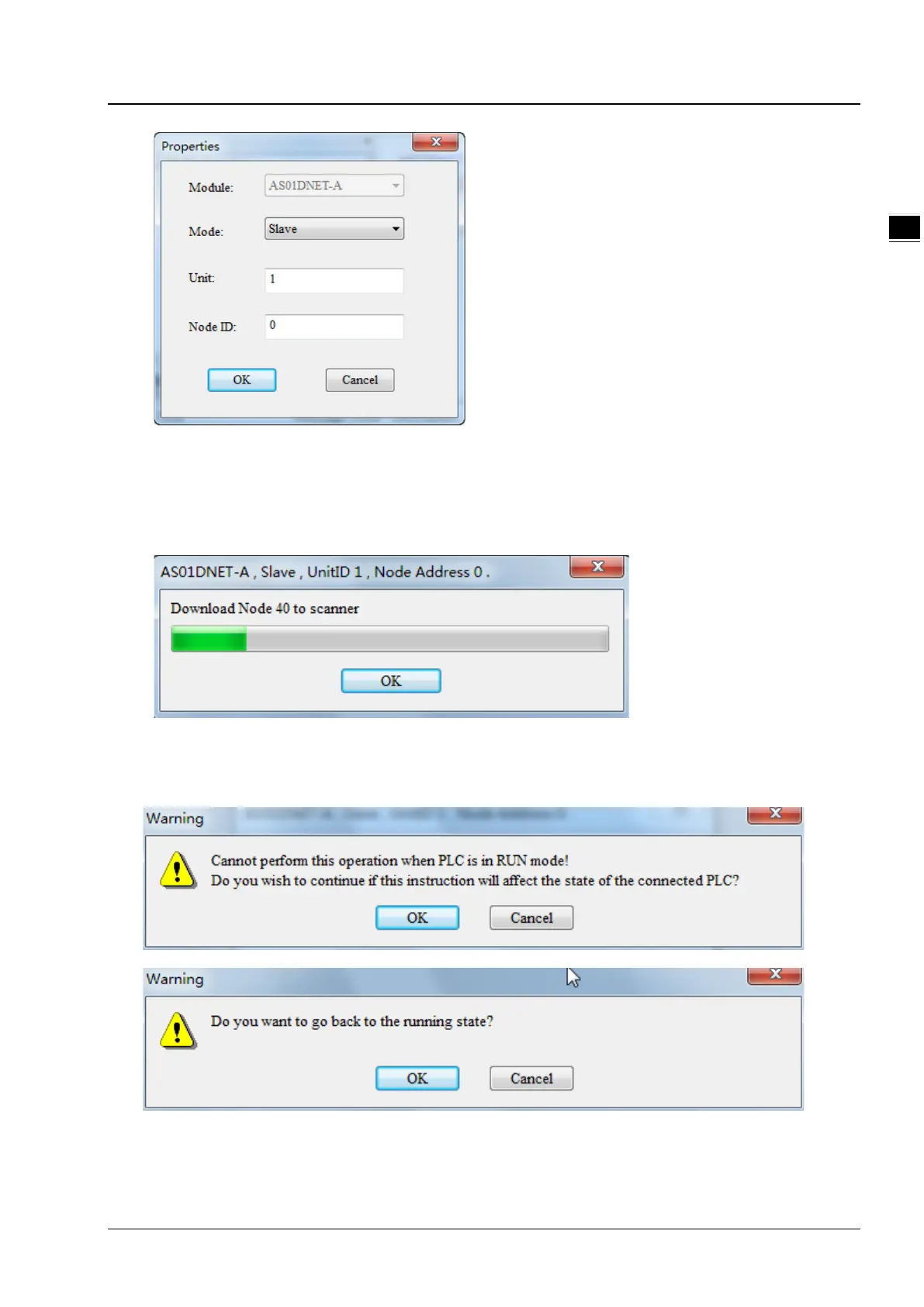

7. Click Network >> Download. If the PLC is in STOP state, the following dialog box will exist during the download.
The dialog box will disappear automatically after the download is finished. AS01DNET-A will be in slave mode after
repower ON.
8. If the PLC is in RUN state, the Warning dialog boxes will pop out before and after the download. Users can click
OK or Cancel according to actual situation.
