Delta ASD-M-0721 Series - Page 272

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-41
 The Source of External Pulse:
0: Low-speed optical coupler (CN1 Pin: PULSE, SIGN)
1: High-speed differential (CN1 Pin: HPULSE, HSIGN)
P1-01●
CTL

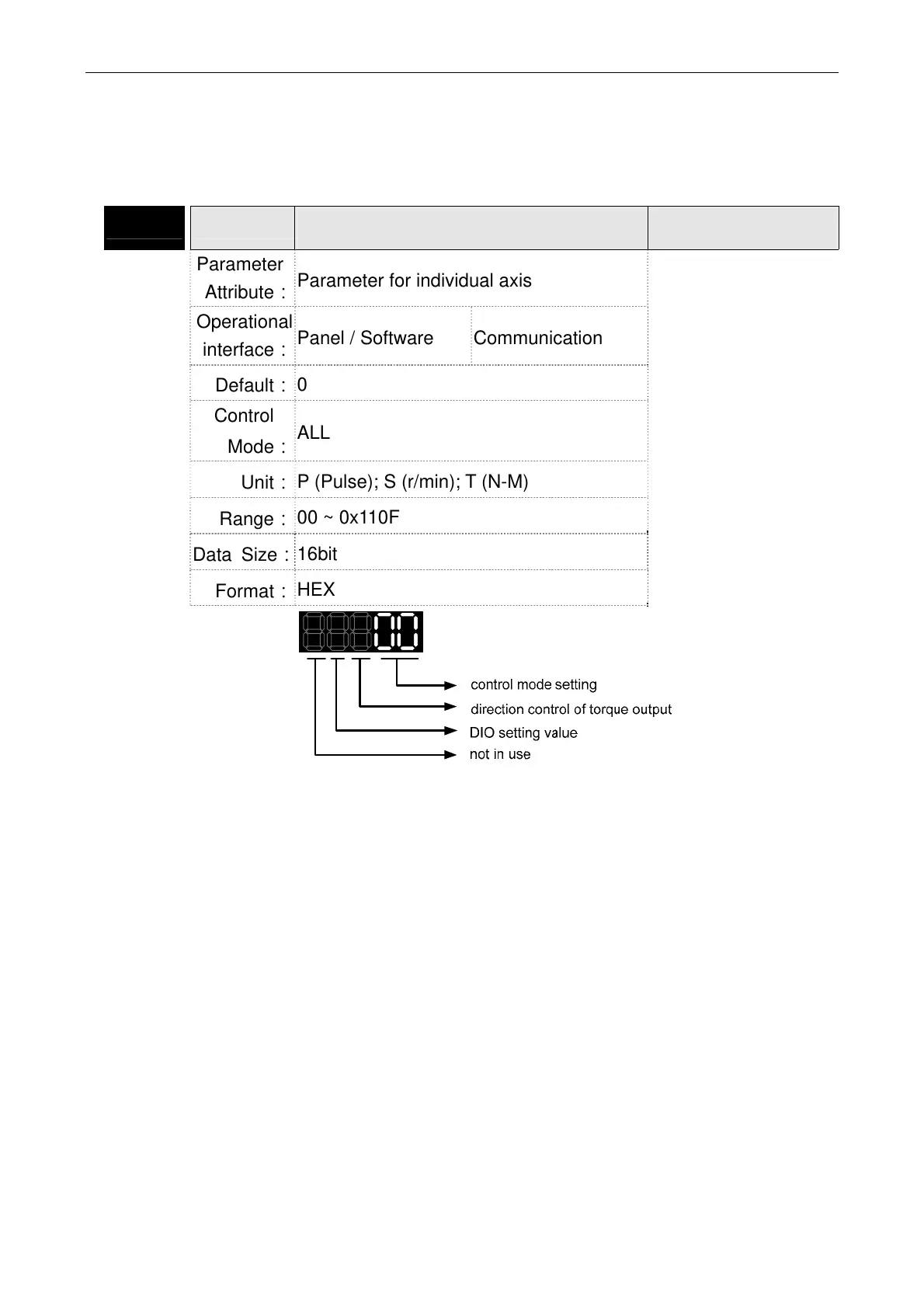

Input Setting of Control Mode and
Control Command
Address: 0102H
0103H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.1
Table 8.1
Operational
interface：
Panel / Software Communication
Default：
0
Control
Mode：
ALL
Unit：
P (Pulse); S (r/min); T (N-M)
Range：
00 ~ 0x110F
Data Size：
16bit
Format：
HEX
Settings：
